Audio Module (AUD), Replacing

Audio module (AUD), replacing

Preparatory work

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.




The audio module (AUD) is under the right front seat.

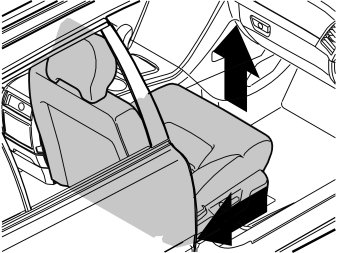

Move the right-hand front seat to its rearmost position.
Ignition off.

Removing the control module

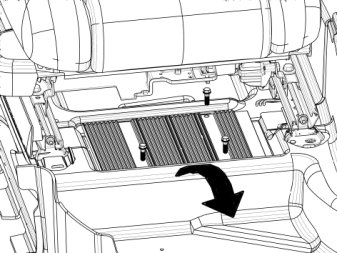

Remove the screws.
Disconnect the connectors.

Installing the control module





Note! Check that there is no dirt in the optic connectors.

Reconnect connectors.

Note! The bend radius of the optic cables must not be less than 25 mm.

Install:
- audio module (AUD)
- the screws. Tighten.

Ordering software

Note! After replacing the audio module (AUD), new software must be ordered and programmed.

Order the software. Software Downloading
