Component Location, Audio Module (AUD)

Location of components

Location Of Components:

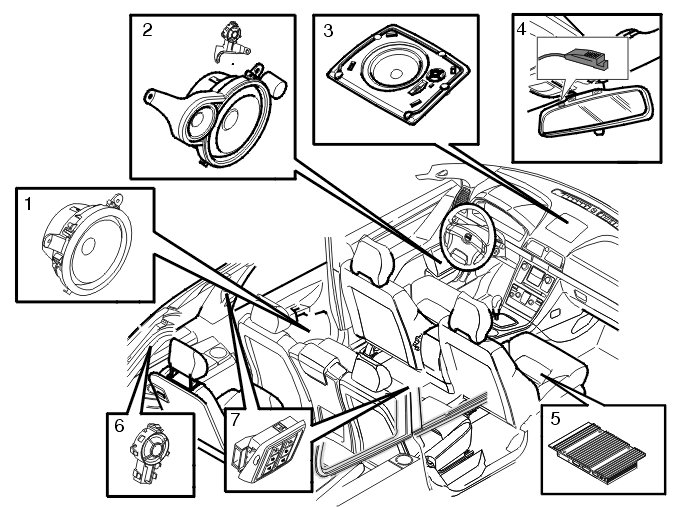

Overview
1. Loudspeakers left and right rear door
2. Loudspeaker and treble loudspeakers (only certain models) left and right front door
3. Center loudspeaker (certain models only)
4. Microphone rear view mirror
5. Audio module (AUD)
6. Treble loudspeakers left and right D-post (only certain models)
7. Headset panel left and right C-post.
