Signal Specification, Antenna Module (ATM)

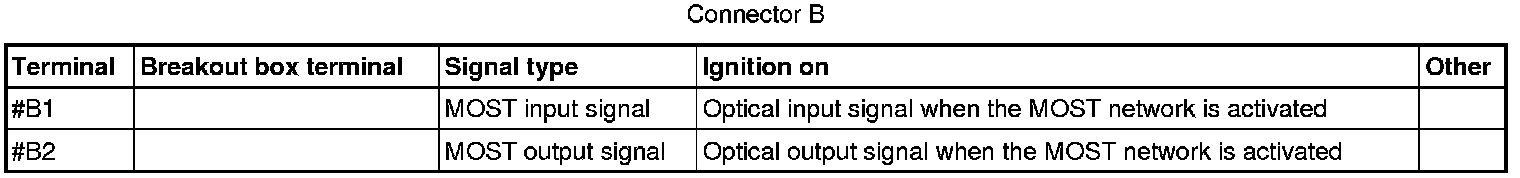

Signal specification

General

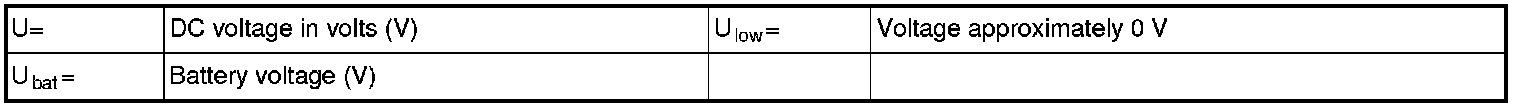

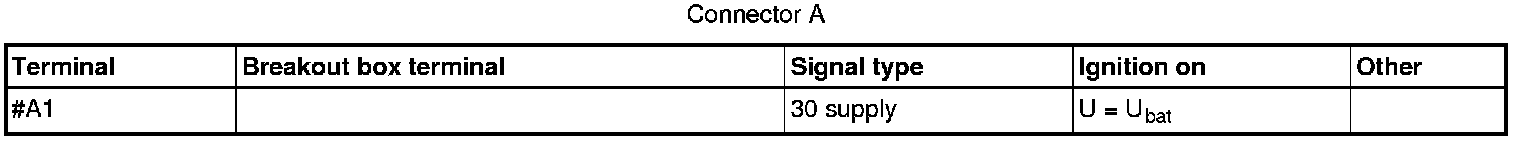

All the values given below are between the terminals stated in column 1 and terminal #A2 in column 2 (signal ground). This applies unless otherwise indicated in brackets.

Note! It is important to check ground terminals before taking readings.
