Ignition and High Voltage Components

Ignition and high voltage components

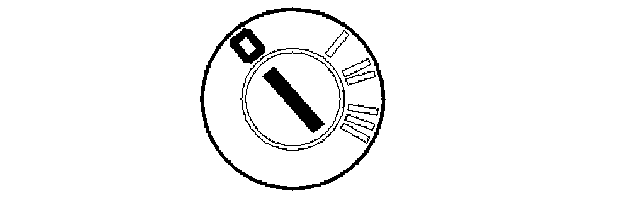

Switch off the ignition before:







- Connecting and disconnecting the test instruments
- Connecting and disconnecting the connectors
- Taking readings using an ohmmeter.

High voltage







There are dangerous voltages at all points in the ignition system, including the connectors etc.

WARNING: The ignition system operates at high power and voltages. Contact with the high tension circuit (the ignition coil, spark plug caps and distributor cap) is dangerous.

CAUTION: Because of the fire hazard avoid sparking when working on the fuel system, especially when checking the injectors.
