Radiator mounting, reconditioning

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work




Remove the radiator. See Radiator, replacing Radiator, Replacing.




Position the reinforcement plate from the kit. Mark the cutting point.

Note! The cutting point is marked on the reinforcement plate.

Remove the reinforcement plate. Cut off the old mounting.

Installing a new mounting




Position the new mounting. Make marks for holes.

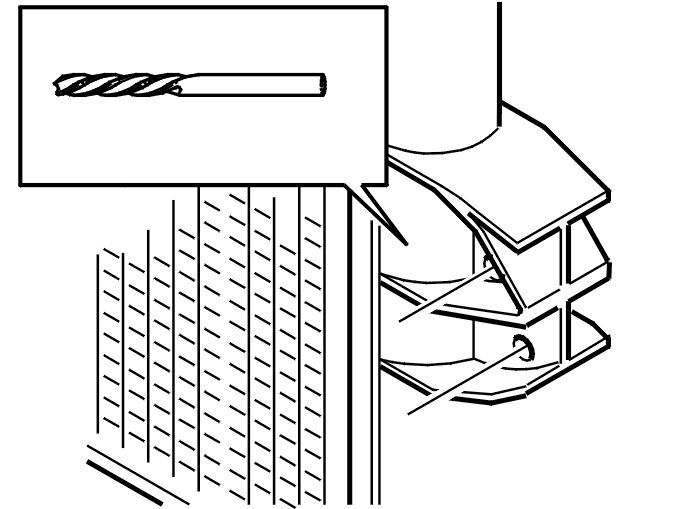

Drill using a6 mmdiameter drill bit.




Apply two part adhesive, part number 161 626-5, on the surfaces in contact with the radiator. Install the mounting.

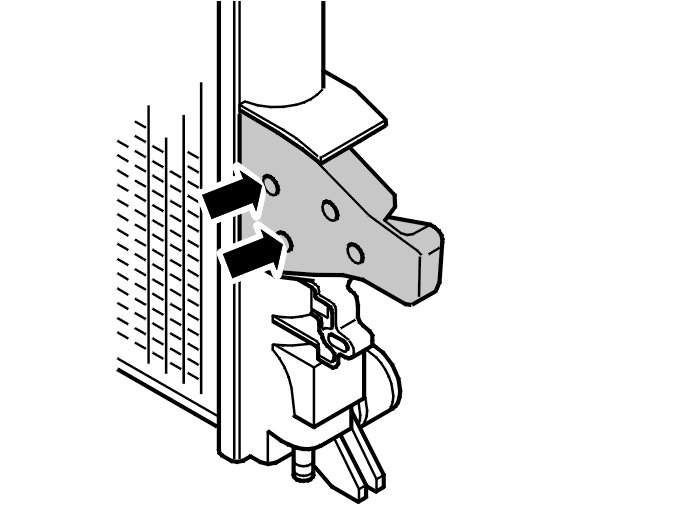

Install the 4 M6 screws.
