Home >> Volvo >> 2006 >> XC90 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> CD/MD Player

CD/MD Player



CD/MD Player

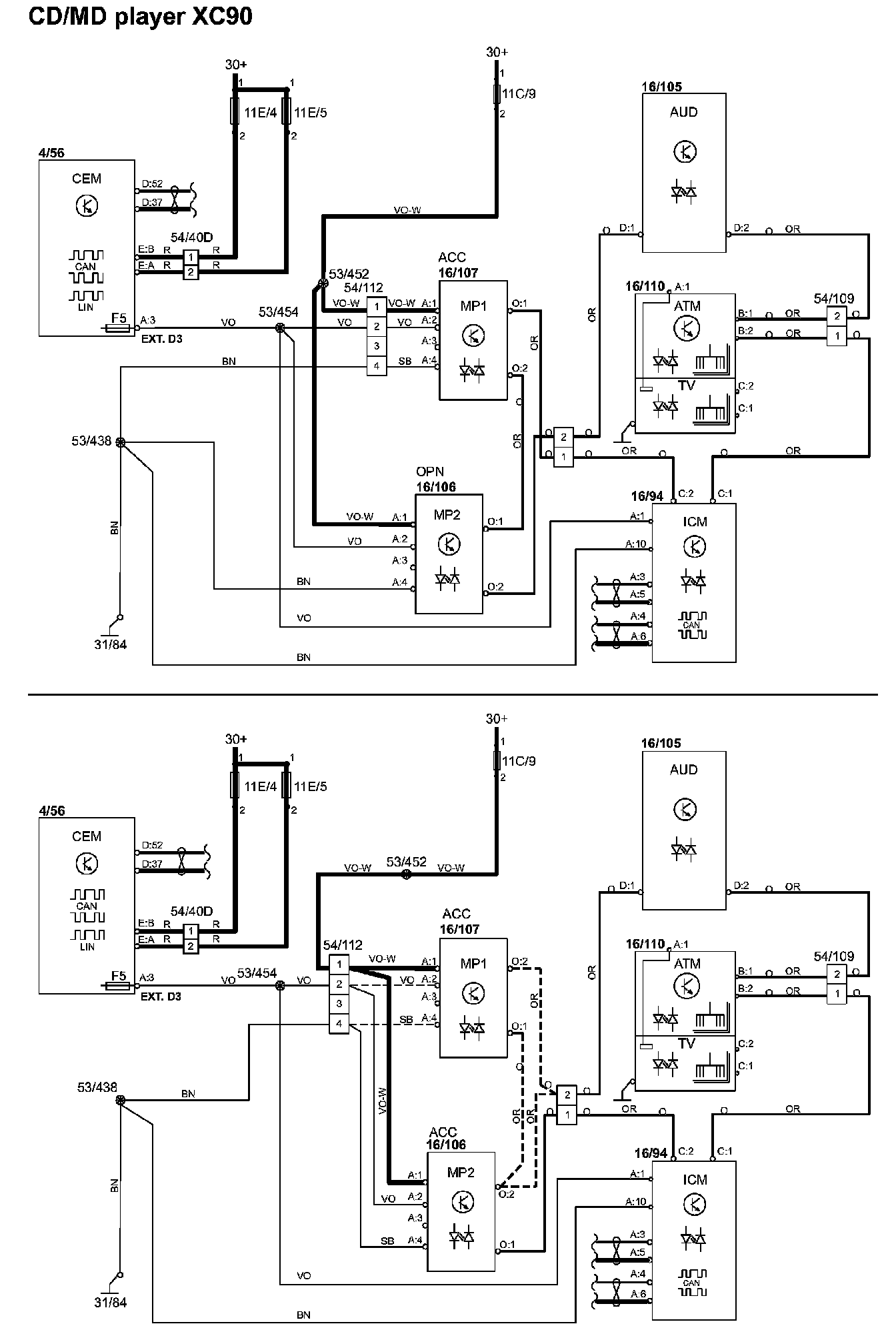

CD/MD Player:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
