Rear Mudguard

Rear mudguard




























Rear mudguard




- Raise the car
- Remove the rear wheels

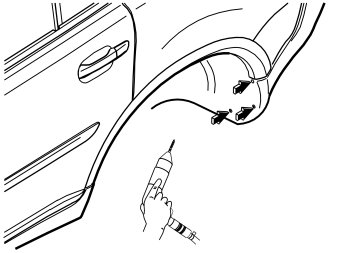

- Carefully drill out the rivets holding the fender liner and the bumper cover. Use a 6 mm (1/4 " ) diameter drill bit. Do not damage any of the plastic components.

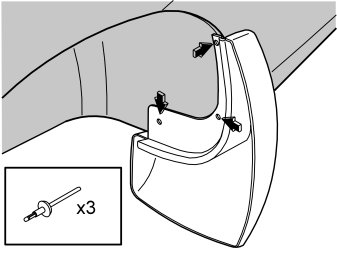

- Rivet the mudguard in the fender liner and the bumper cover
- Reinstall the wheels. Tighten to 140 Nm (104 lbf.ft)
- Lower the car.
