Center Loudspeaker

Centre loudspeaker



















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Centre loudspeaker

Illustration A




Remove the loudspeaker grille as follows:
- Take a piece of 1.5 mm (1/16") diameter welding rod. Bend one end to 90° (L=5 mm (13/64")). The other end is bent to form a handle
- Insert the first bent end down into the joint between the loudspeaker grille and the dashboard as illustrated, until it engages
- Twist the welding rod 90° so that the bend section engages with the underneath of the loudspeaker grille. It may necessary to move the welding rod along the joint to twist the rod around.

Illustration B




- Pull upwards until the loudspeaker grille detaches. The loudspeaker grille is securely fastened by four clips.

Note! Do not damage the dashboard.

- Place the loudspeaker grille to one side.

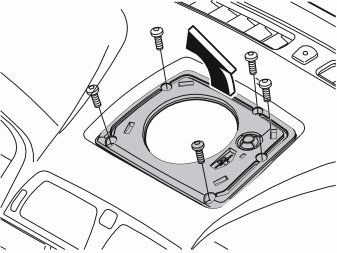

- Remove the five screws in the loudspeaker cut-out bracket
- Pull up the bracket and place to one side. The bracket will not be reused.




- Take the new loudspeaker, connect the pre-routed connector in the dashboard to the loudspeaker
- Position the loudspeaker. Tighten the loudspeaker using the five screws positioned in the loudspeaker cut-out bracket
- Reinstall the loudspeaker grille.
