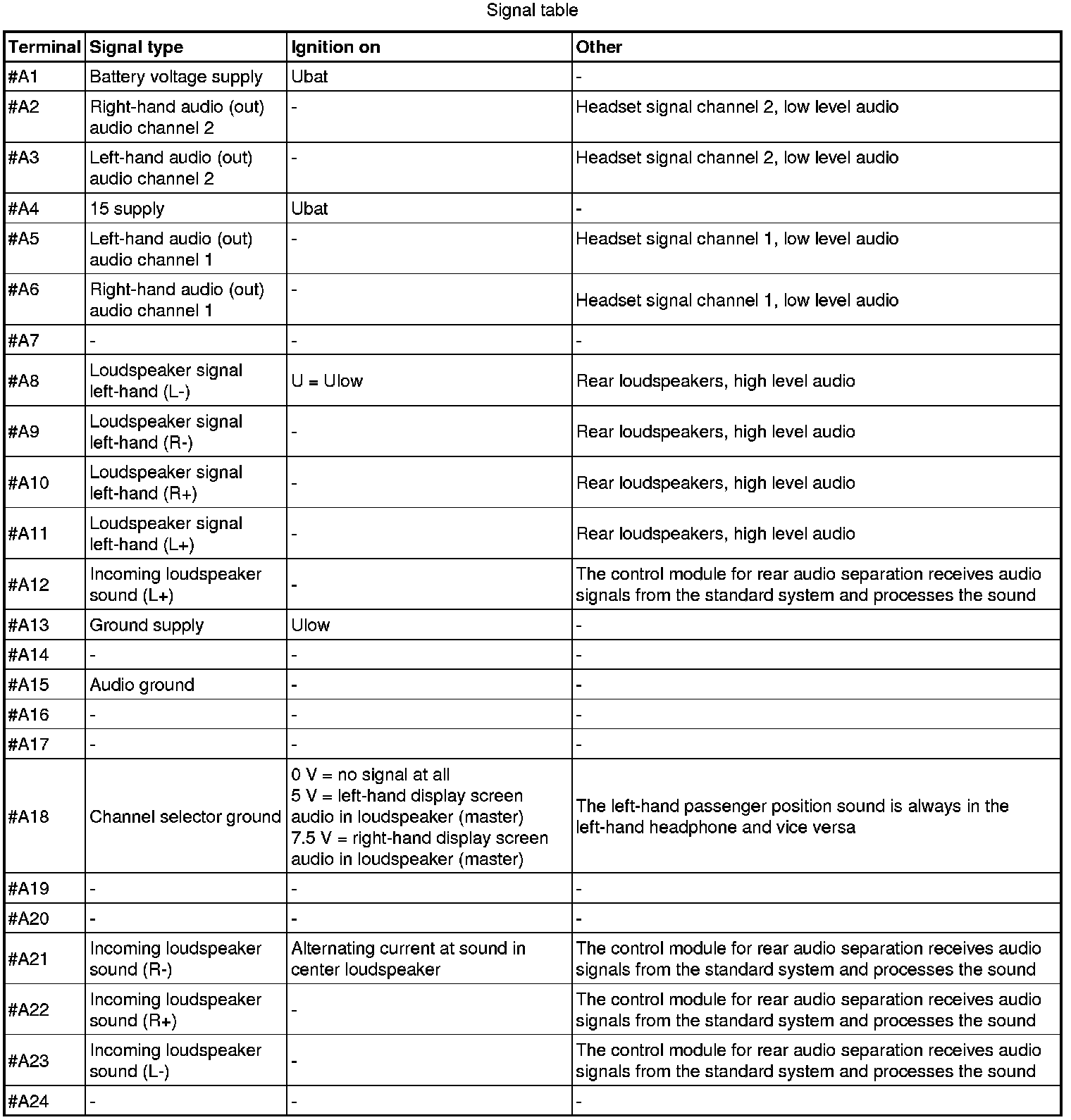

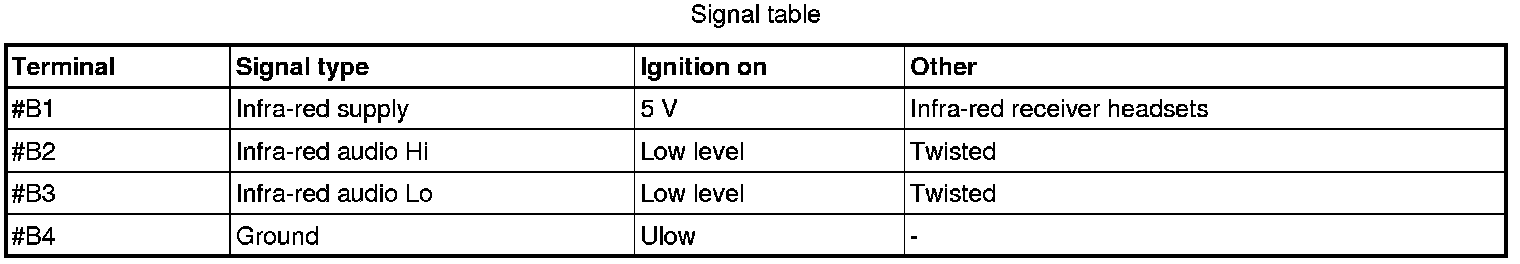

Signal Specification, Rear Sound Separation Electronic Module. Rear Seat Entertainment, Generation 3.2






Signal specification, control module for rear audio separation
