Tracker, Volvo on Call
Tracker, Volvo On Call
INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.
Tracker, Volvo On Call
Note! This accessory requires software unique to the car.
- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.
Applies to cars with automatic gearbox
- Turn the ignition key to position II.
Applies to all models
- Move the gear selector lever to its rearmost position.
- Carefully prize away the gear lever panel at the rear edge using a weatherstrip tool.
- Press in the catches and remove the panel.

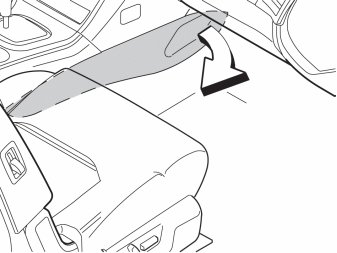

- Remove the left and right-hand side panels from the tunnel console. Pull them away at the front edge and continue backwards until all clips have released.

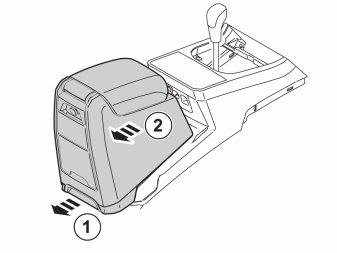

- Pull the handle, move the tunnel compartment backward and lift it away.
- Remove the cover.

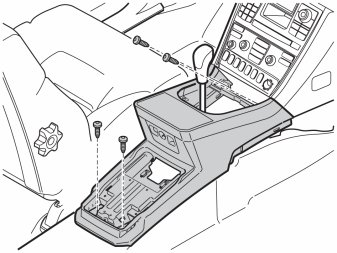

- Remove the screws and unplug the connectors.
- Lift away the tunnel console.
- Remove the two screws holding the centre console to the climate control panel and the control module.
- Pull out the centre console at the lower edge and pull it away from the top edge.
- Unplug the connectors from the climate control panel and the control module.
Note! Do not damage the gear lever knob.
- Unplug the four connectors from the phone module (PHM). The larger connector has its catch underneath.

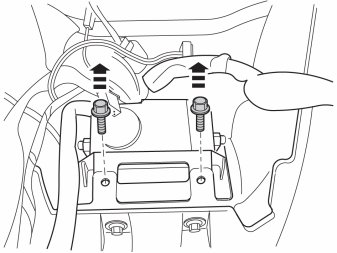

- Remove the screws.

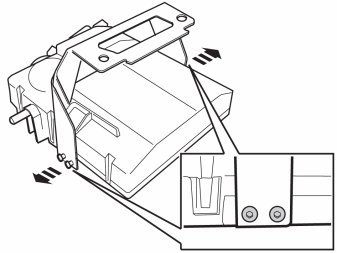

- Place the cables and connectors beside the control module. Remove the control module by moving it forward until the guide pins release.
- Remove the four screws. Allow the console to remain.
Note! The console has different appearances depending on model year.

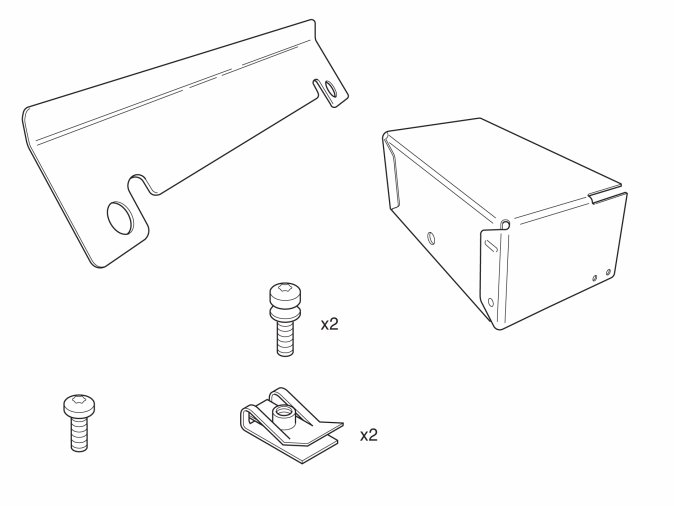

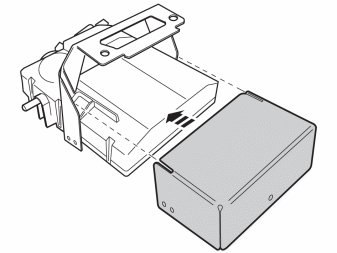

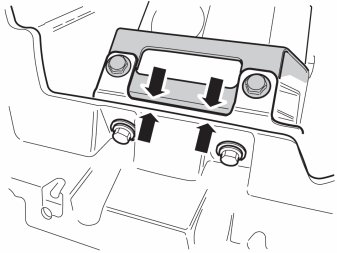

- Install the protective metal cover from the kit. It must be located on the outside of the existing console.

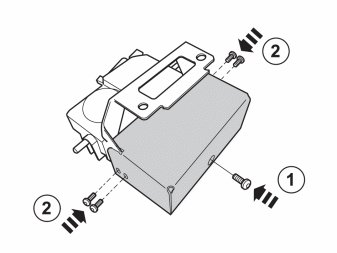

- Install the screw from the kit and tighten it three turns.
- Reinstall the four screws.
- Tighten all screws.
Reinstall:
- the control module with console
Note! The protruding section of the console for the control module must be located above the existing console.
- the screws
- the connectors.
- Remove the existing screw clips.

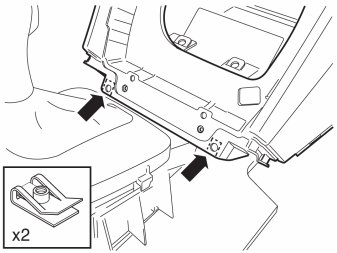

- Install the new larger screw clips. Centre them against the existing holes.
Reinstall:
- the tunnel console with screws and connectors
- the side panels.
- Reinstall the centre console by first hooking it in at the top edge and pressing it up, and then angling in the lower section.

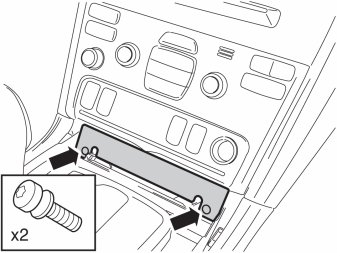

- Install the protective metal cover with the shear screw.
Note! The bend on the upper section must point inward.
- Tighten the screws until the top is broken off.
- Reinstall the gear lever panel.
- Turn the ignition key to position II.
- Reconnect the battery negative lead.
- Download the software for the accessory's function following the service information in VIDA.
First download software P/N 30775679. Then download software P/N 30677028.
Caution! It is extremely important that the software is downloaded in the correct order.
Functionality check:
1. Start the phone module (PHM) by pressing the telephone's On button.
The phone module starts and requests a telephone code.
2. Enter telephone code, 1234.
The phone module approves the telephone code and requests a PIN code.
