Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information SRS-00ED

Condition

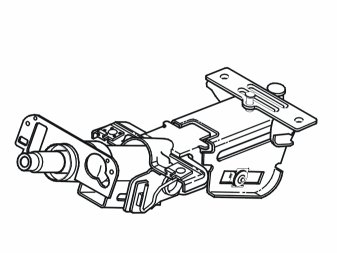

The Supplemental Restraint System Module (SRS) checks the signal from the steering column.
Diagnostic trouble code (DTC) SRS-00ED is stored if the control module registers that the resistance in the signal cable is too low for longer than 10 seconds.
Diagnostic trouble code (DTC) SRS-00ED can be diagnosed in ignition positions I, II or III.

Substitute value
- None.

Possible source
- Short-circuit in connector
- Short-circuit in the signal cable between the steering column and the Supplemental Restraint System Module (SRS)
- Short-circuit in the steering column (resistance too low in igniter).

Fault symptom[s]
- The SRS indicator lamp is lit.
