Activated Too Long

Activated too long

Checking the component

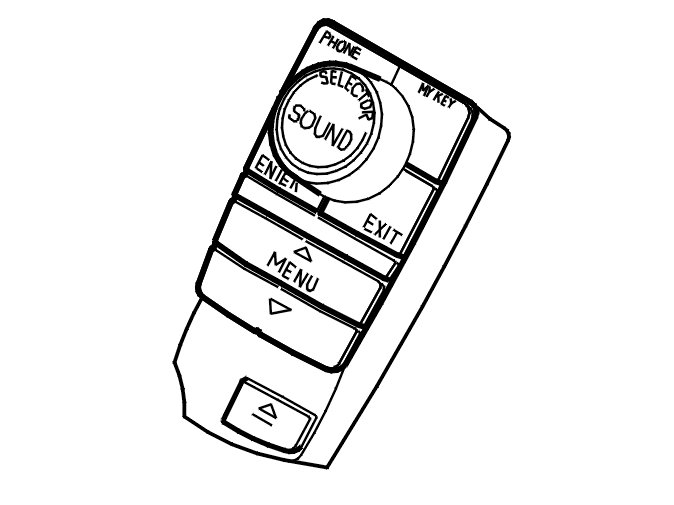

Check if the SOUND button is jammed due to dirt or some object preventing the button from returning.
If the SOUND button does not spring back into place the keypad must be replaced.
Remedy as necessary.

Other information:
- To replace the right-hand keypad, see Infotainment control module (ICM), replacing Service and Repair





Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Activate the infotainment unit and scroll through the sound settings by pressing the POWER button.
Check that the sound setting alternatives are changed.

Is the function OK?

Yes - Troubleshooting procedure complete

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit Fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component

-------------------------------------------------
