Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information AUD-0011

Condition




Diagnostic trouble code (DTC) AUD-0011 is stored if the audio module (AUD) registers an open-circuit in the signal cable to the buttons at headset output 1.
Diagnostic trouble code (DTC) AUD-0011 can be diagnosed when the ignition is on.

Substitute value
- None.

Possible source
- Open-circuit in the signal cable between headset output 1 and the control module

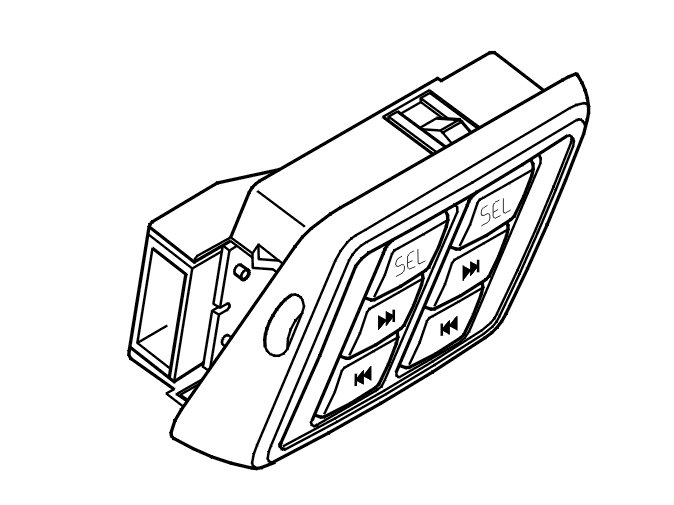

- Open-circuit in the headset panel (defective headset panel).

Fault symptom[s]
- The buttons for the headset output are not working.
