Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information ATM-0005

Condition

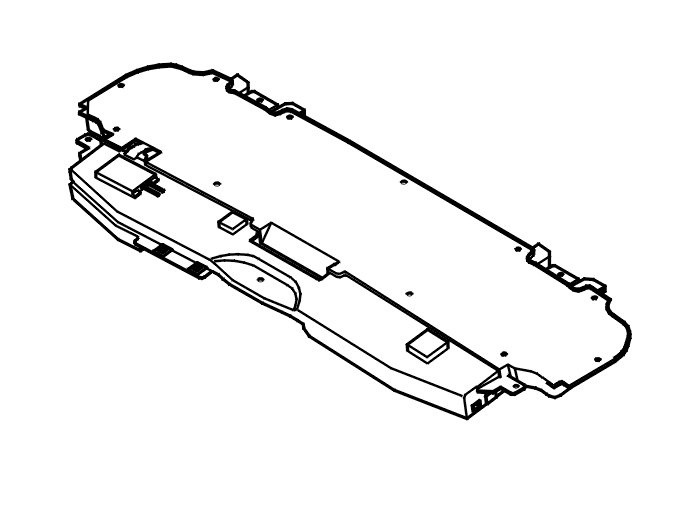

Diagnostic trouble code (DTC) ATM-0005 is stored if the antenna module (ATM) does not detect a GPS unit even though the car is configured for one.
The diagnostic trouble code (DTC) is also stored if the communication between the antenna module (ATM) and the GPS unit is broken.
The multimedia module (MMM) displays the dead reckoning of the car position in the navigation system. This will be incorrect after a long period of driving.
The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute value
- Dead reckoning the position.

Possible source
- No GPS unit
- Fault in the communication between the antenna module (ATM) and the GPS unit.

Fault symptom[s]
- The car's position on the map is incorrect.
