Power Steering Fluid Cooler: Service and Repair

Oil cooler steering gear, replacing

Note: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal
Preparatory work
Remove the front bumper cover.

Removing the oil cooler

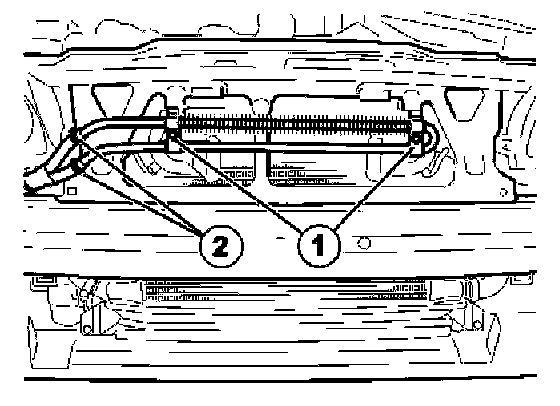

Slacken off the screws (1). Fold down the oil cooler.

Note: Position a container under the oil cooler.

Remove:
- the two clamps (2)
- the hoses
- the oil cooler.

Installation
Installing the oil cooler

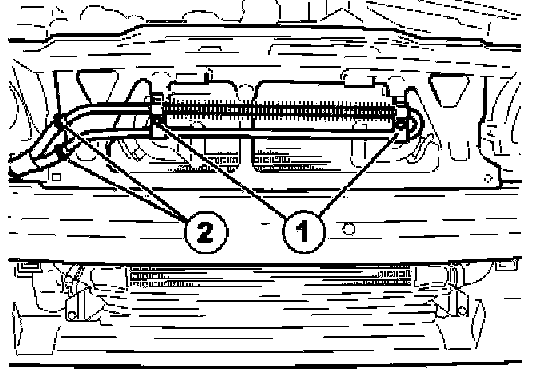

Install:





- the hoses on the oil cooler
- the 2 clamps for the servo hose
- the 2 M6 screws for the oil cooler.

Finishing
Install the front bumper cover.
