Home >> Volvo >> 2006 >> V70 L5-2.4L VIN 64 B5244S6 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Oxygen Sensor >> Preheating, Front Heated Oxygen Sensor (HO2S)

Preheating, Front Heated Oxygen Sensor (HO2S)

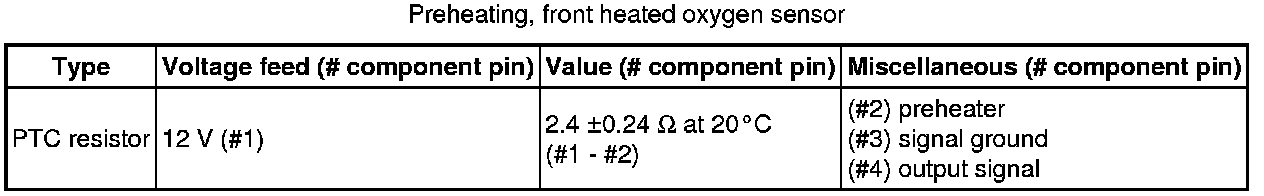

Preheating, front heated oxygen sensor
The values should be regarded as approximate.
