Windshield Washer Motor: Service and Repair

Washer motor, replacing

Removal

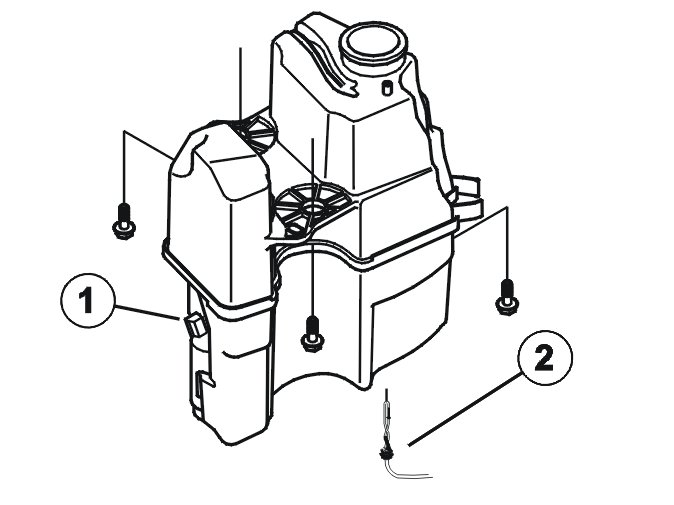

Removing the washer motor




Remove the windshield washer reservoir. See: Windshield washer fluid reservoir, replacing Service and Repair.
Angle the windshield washer reservoir so that the windshield washer fluid does not leak. Alternatively empty the reservoir.
Remove the hose from the motor.
Disconnect the connector from the motor.
Remove the motor from the reservoir.

Installation

Installing the washer motor

Note! Before installing the pump, immerse the inlet pipe in water or a soap solution to avoid compressing the rubber seal.

Install:
- the motor
- the connector
- the hose
- the windshield washer reservoir. See: Windshield washer fluid reservoir, replacing Service and Repair.
