Window Shade: Service and Repair

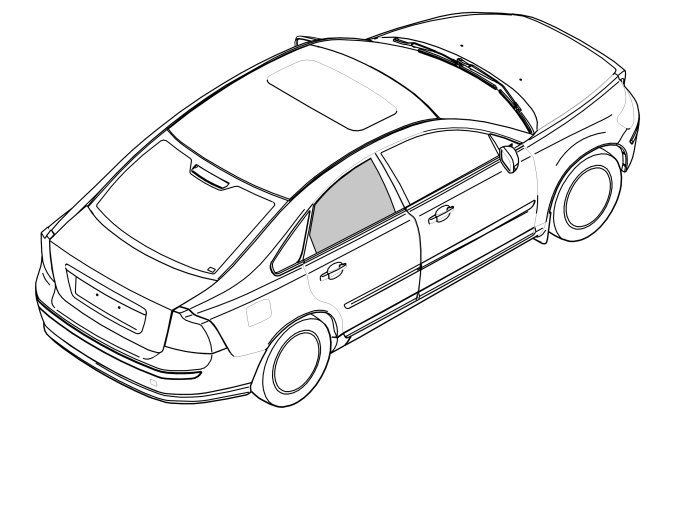

Sun blind, second row




















Sun blind, second row

Note! The sun blinds open using spring force

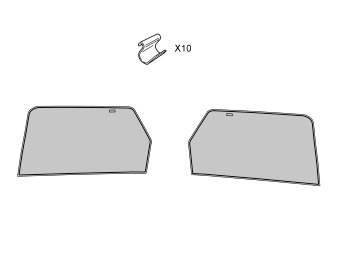

Side sun blind




- Open the side window completely

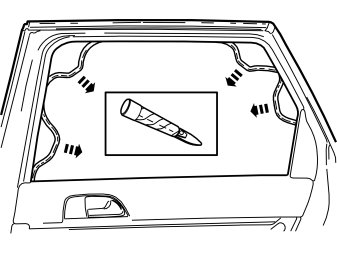

- Pull off the rubber strip from the corner of the door arch.

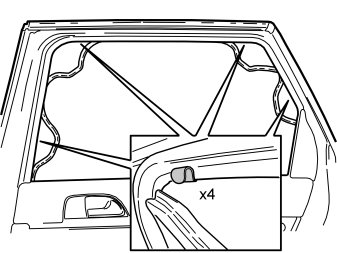

- Press the four clips into place on the panel edge where the rubber strip is secured. See the illustration
- Press the rubber strip back on the panel edge in the door arch.




- Close the side window
- Hold the side sun blind up against the side window. Ensure that the Volvo decal is towards the rear of the car and secured at the top edge
- Secure the sun blind in the clips on the door arch.

- Repeat the operation on the other side window.

Packing up the sun blind












- Grip two diagonal corners and twist the sun blind as illustrated. Minimal force is required to fold the sun blind.
