Signal Specification

Signal specification

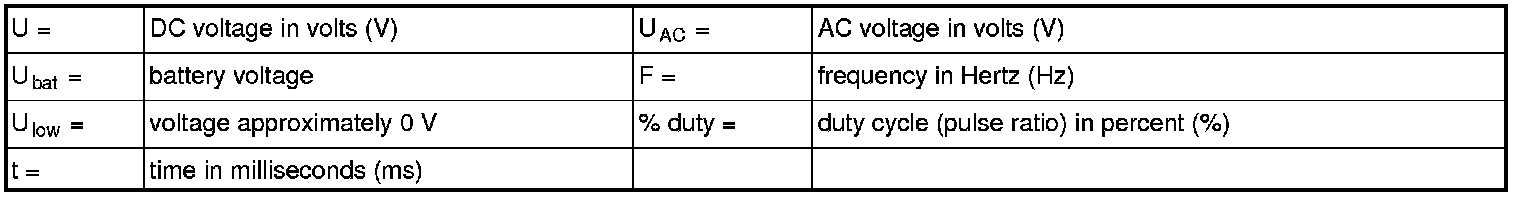

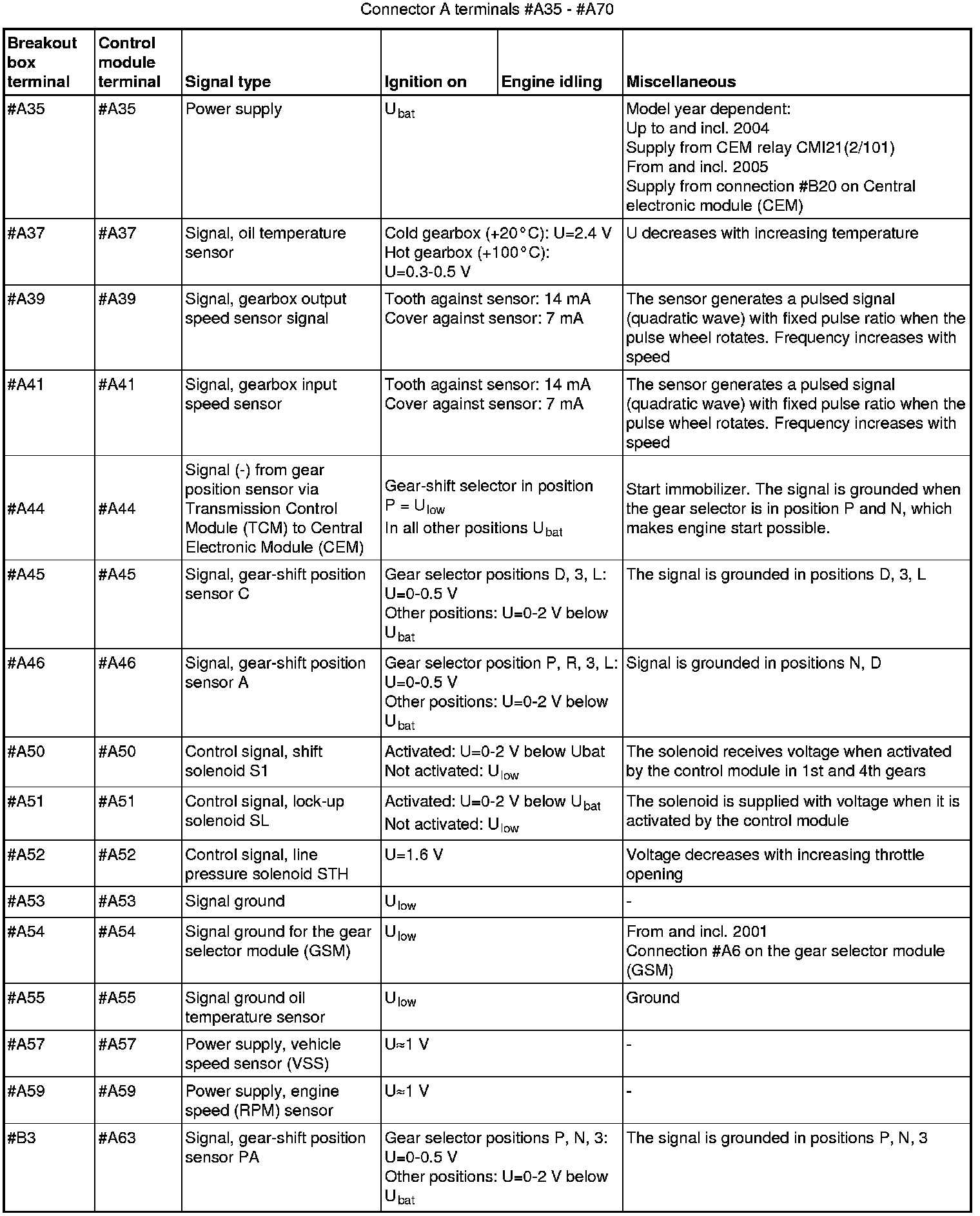

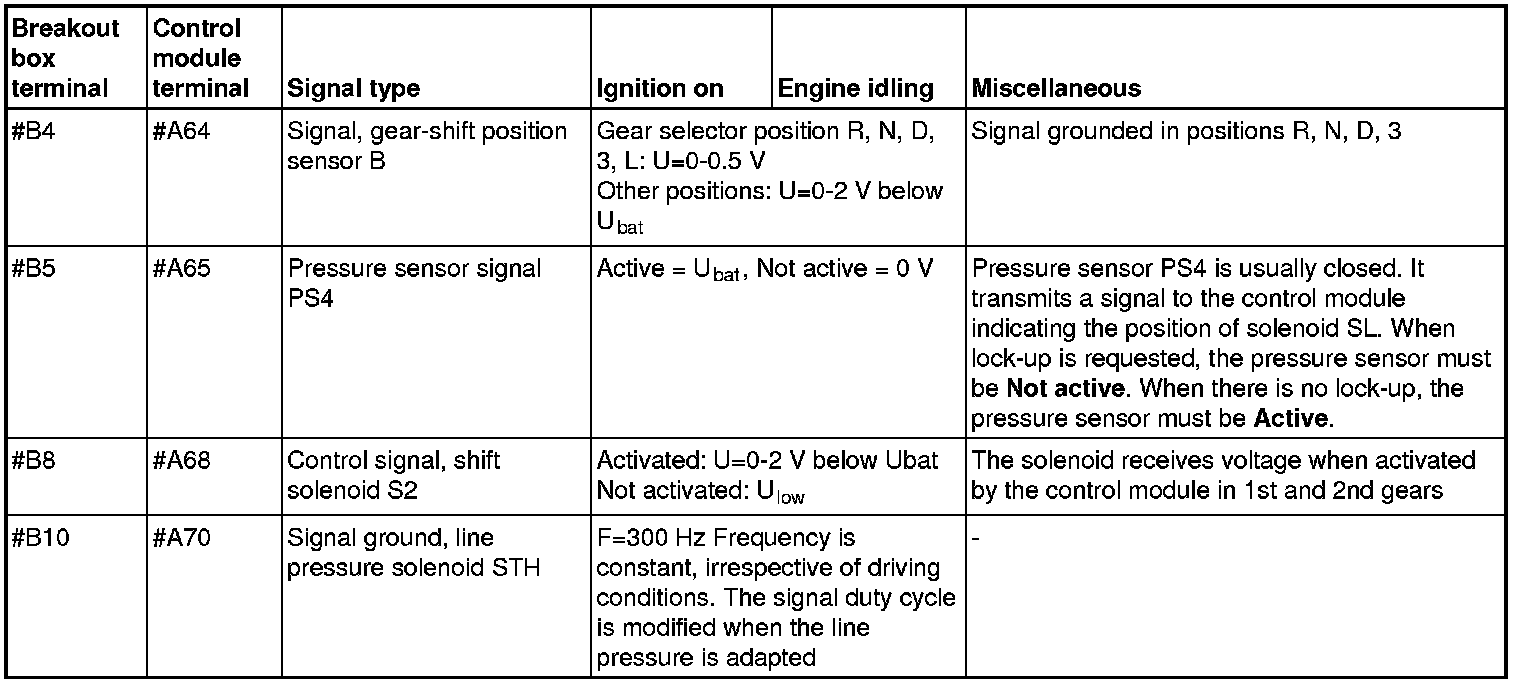

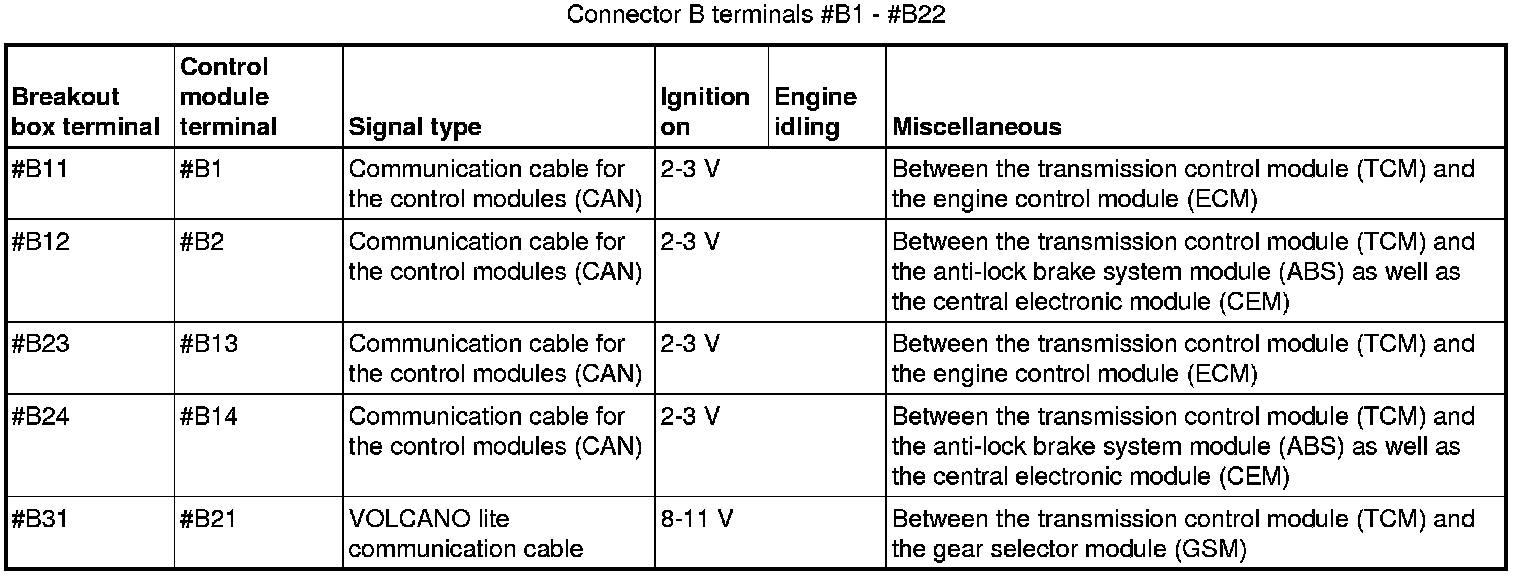

All the values listed below are between the terminal in column 1 and terminal #A53 (signal ground), unless otherwise indicated in brackets.

Note! Connect the breakout box and check the ground connections before starting to measure.
