Fault-Tracing Information

Fault-tracing information

Condition




Only occurs at extremely high outdoor temperatures. Occurs at speeds around 15-40 km/h, with low to medium loads and when turning (for example, turning a street corner).

Possible source

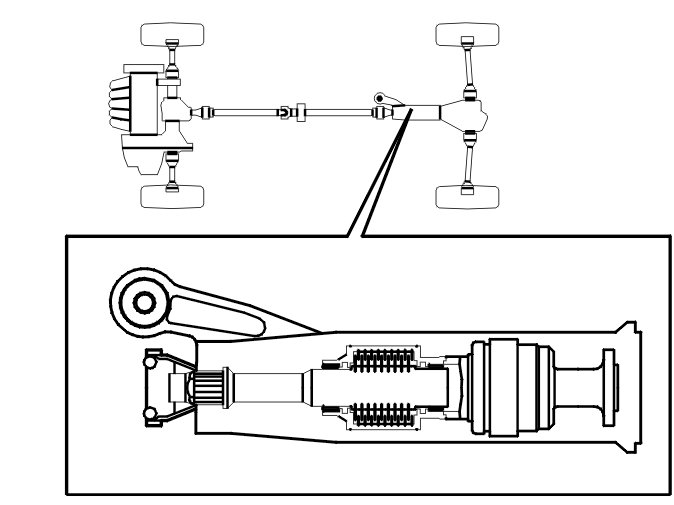

- The front bearing for the outer ring in the viscous unit is loose and rotates.

Fault symptom[s]
- Scraping noise from the viscous coupling.
