Gear selector lever assembly Geartronic, replacing

Removal

Remove the centre console
See Replacing the parking brake lever Replacing the Parking Brake Lever.

Remove the boot from the gear selector lever
See Gear selector knob, Geartronic, replacing, 4T65EV-GT Gear Selector Knob, Geartronic, Replacing.

Remove the gear selector knob
See Gear selector knob, Geartronic, replacing, 4T65EV-GT Gear Selector Knob, Geartronic, Replacing.

Fold the top panel with the boot away from the gear selector lever




Remove the wiring from the clips.

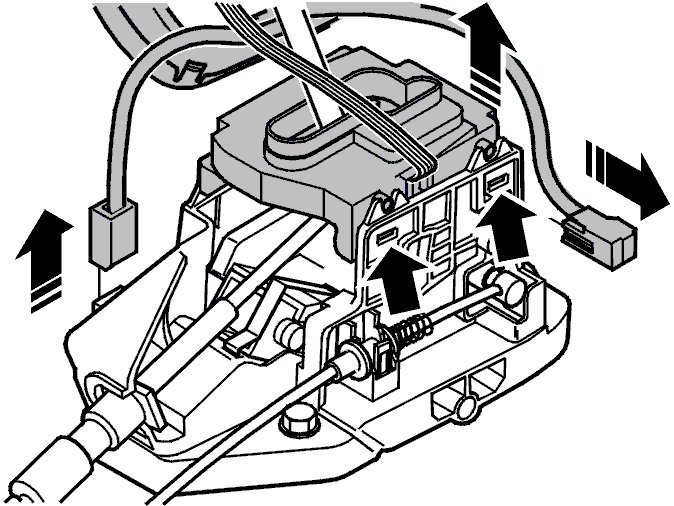

Separate the solenoid connector.
Disconnect the connector from the gear selector assembly.

Remove the stop for the gear selector assembly

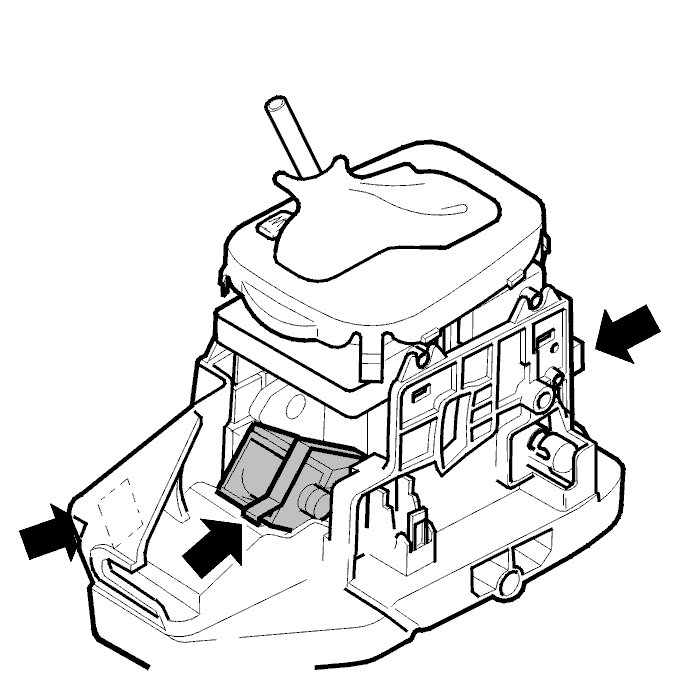

Press in the 4 catches on the sides. Pull the stop straight up out of the gear selector assembly.

Remove the cables and the gear selector assembly





Remove:
- the catch for the cable at the gear selector lever
- the cable from the end of the gear selector assembly
- the key lock cable. Pry out the locking sleeve slightly and lift up the cable from the gear selector assembly
- the 4 screws for the gear selector assembly.

Transfer the solenoid with the connector




Remove the mounting bracket. Pull the bracket up out of the gear selector assembly. Disconnect the connector.

Installation

Install the cable and the gear selector assembly





Install:
- the gear selector assembly to the bodywork. Tighten to 25 Nm
- the cable to the gear selector. Secure the cable with the catch
- the cable to the end of the gear selector assembly
- the key lock cable to the gear selector assembly. Place the cable in the extracted locking sleeve.

Install the stop for the gear selector assembly




Install the stop for the gear selector assembly. Lock it into place in the gear selector assembly.

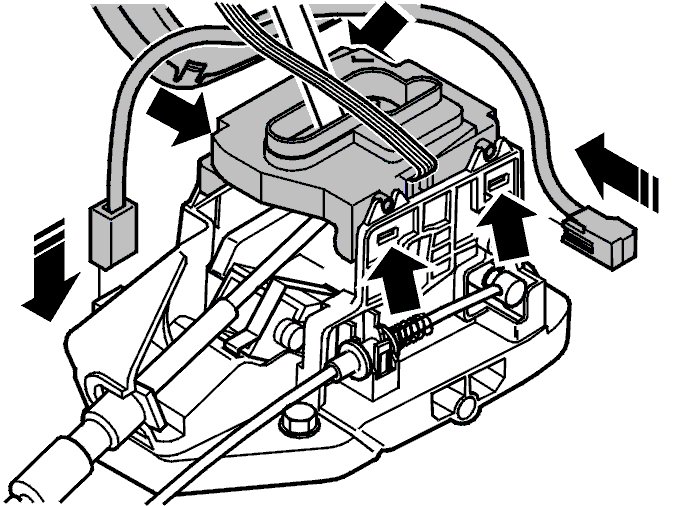

Connect the solenoid connector.
Install the rear connector in the gear selector assembly.

Install the gear selector knob and the boot





Install:
- the boot and the top panel over the gear selector
- the gear selector knob Press it so that it locks in the gear selector.
Check that the lock function operates in its positions.

Install the locking sleeve for the boot

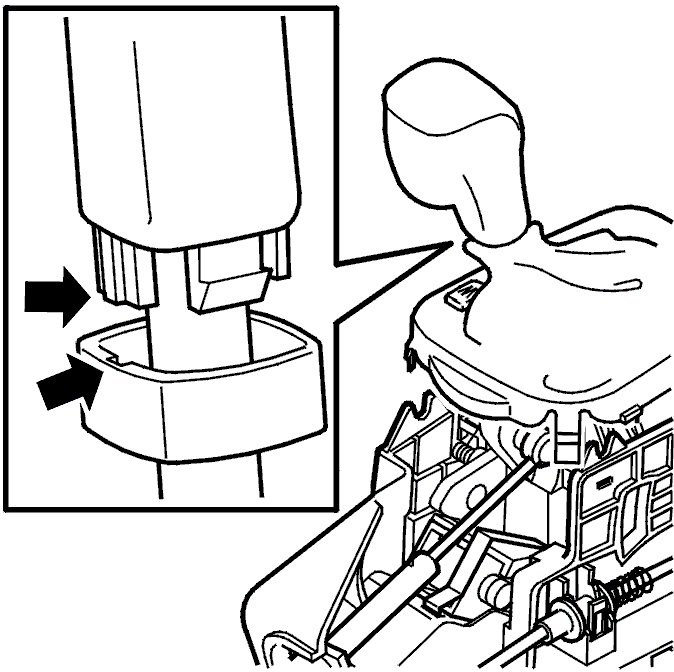

Note! The locking sleeve cut-out must be forwards so that it passes into the guide for the gear selector knob

Slide the locking sleeve and boot up to the knob guide. Pull up the sleeve so that it locks the boot.

Initial setting of the key lock cable (adjustment)
Adjust the key lock cable. See: Key interlock cable, initial setting and adjustment Procedures.

Install the centre console
See Replacing the parking brake lever Replacing the Parking Brake Lever.
