Guide Sleeve Key Lock Cable

Guide sleeve key lock cable

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

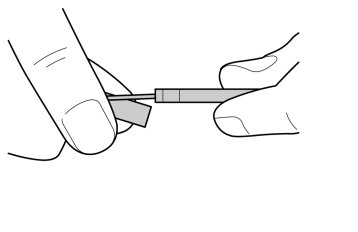

Press the spring towards the cable sleeve.

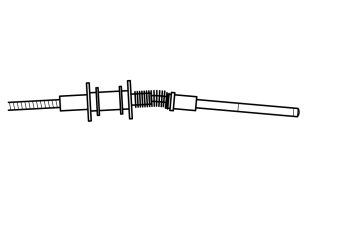

Pull the cable out of the cable sleeve (approximately 10 mm).
Remove the guide sleeve.
Remove the spring. Ensure that the broken section of the guide sleeve is removed from the cable sleeve.

Installation

Install a new guide sleeve in reverse order.
