Replacing the Sealing Ring For the Oil Pump

Replacing the sealing ring for the oil pump

Special tools:
999 5069 EXTRACTOR 999 5069 Extractor
999 5117 PUNCH 999 5117 Punch

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Removal

Removing the transmission

Remove the transmission according to Transmission, removing Gearbox, Removing.

Removing the torque converter
Pull the torque converter straight out of the transmission. Check the torque converter throat for damage.

Removing the sealing ring from the oil pump




Use extractor 999 5069 EXTRACTOR 999 5069 Extractor.

Installation

Installing a new sealing ring on the oil pump

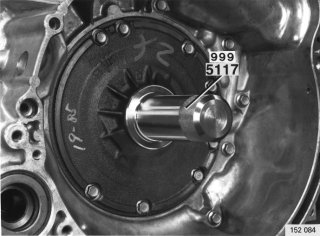

Use drift 999 5117 PUNCH 999 5117 Punch.

Note! Drift 9995117 has been modified according to the Workshop Guide.

Installing the torque converter




Lubricate the torque converter throat with ATF oil.

Note! Take care not to damage the oil pump during installation.

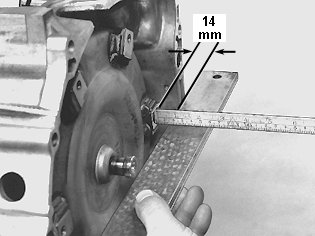

Make sure torque converter is as far into the transmission as possible. Check with a ruler. The distance between the cover and retaining tabs must be approximately 14 mm.

Installing the transmission
Install the transmission Gearbox, Installing.
