AW55-50 Transmission

Transmission output speed sensor, replacing

Preparations
Switch off the ignition.

Removing the air cleaner (ACL) housing




Remove the air cleaner housing ACL assembly with the intake pipe. Pull the air cleaner (ACL) housing out of its mountings.

Removing the sensor




Separate the connector.

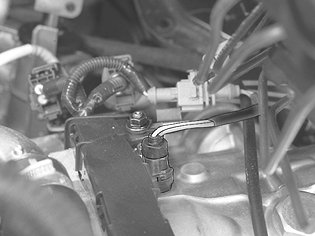

Remove the nut for the cable duct and bracket. Unhook the components.
Clean thoroughly around transmission output speed sensor. Remove the sensor.

Installing the sensor




Lubricate the O ring for the new vehicle speed sensor (VSS).
Install the sensor. Tighten to 5.5 Nm.

Install:
- the bracket and cable duct. Tighten to 5.5 Nm
- the connector.

Installing the air cleaner (ACL) housing




Install the air cleaner (ACL) housing, including all hoses and electrical terminals.

Checking diagnostic trouble codes (DTCs)
Check and erase any diagnostic trouble codes (DTCs).
