4T65 Transmission

Transmission input speed sensor, replacing

Removing the line pressure solenoid

Note! The line pressure solenoid must be removed to access the input speed sensor.

See Solenoid, line pressure, replacing

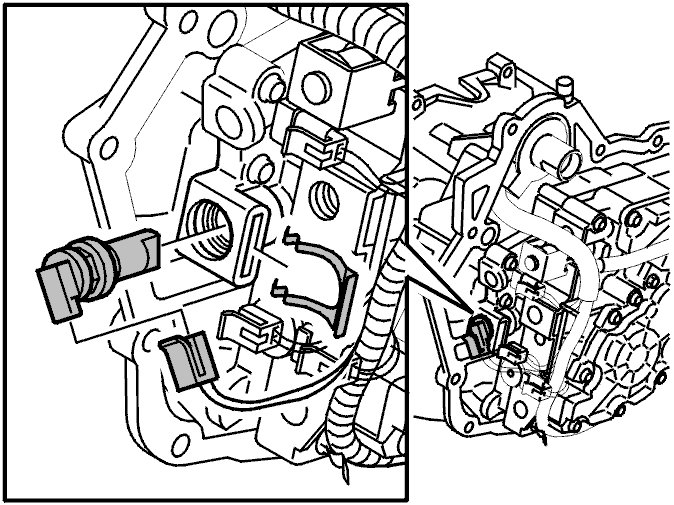

Removing the input speed sensor





Note! Note the position of the input speed sensor during removal. This is important for installation.

Remove:
- the connector
- the clip. Use a narrow screwdriver to remove the clip
- the speed sensor.

Installing the input speed sensor





Note! Install the input speed sensor in the same position noted when it was removed.

Install:
- the input speed sensor
- the clip
- the connector.
Check that the input speed sensor is secure.

Installing the line pressure solenoid
See Solenoid, line pressure, replacing
