Signal Specification, Suspension Module (SUM)

Signal specification

Signal specification

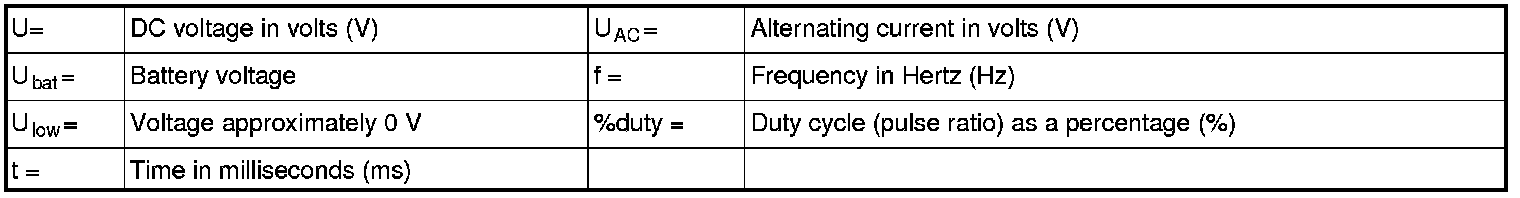

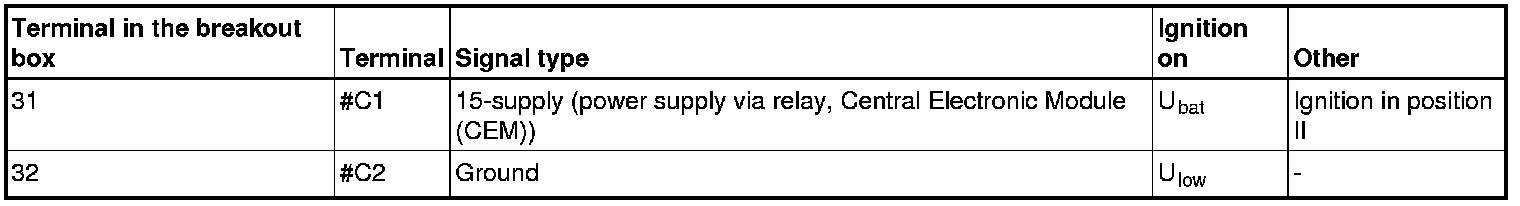

Connector C, terminals #C1-#C2
All values given below are between the terminals stated in column 1 (terminal in the breakout box) and terminal #C2 (ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check ground terminals before reading off.

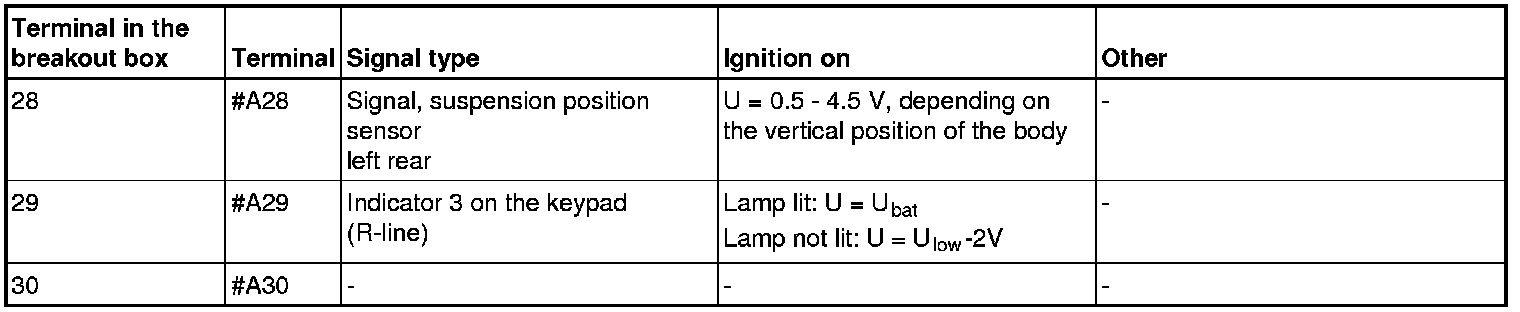

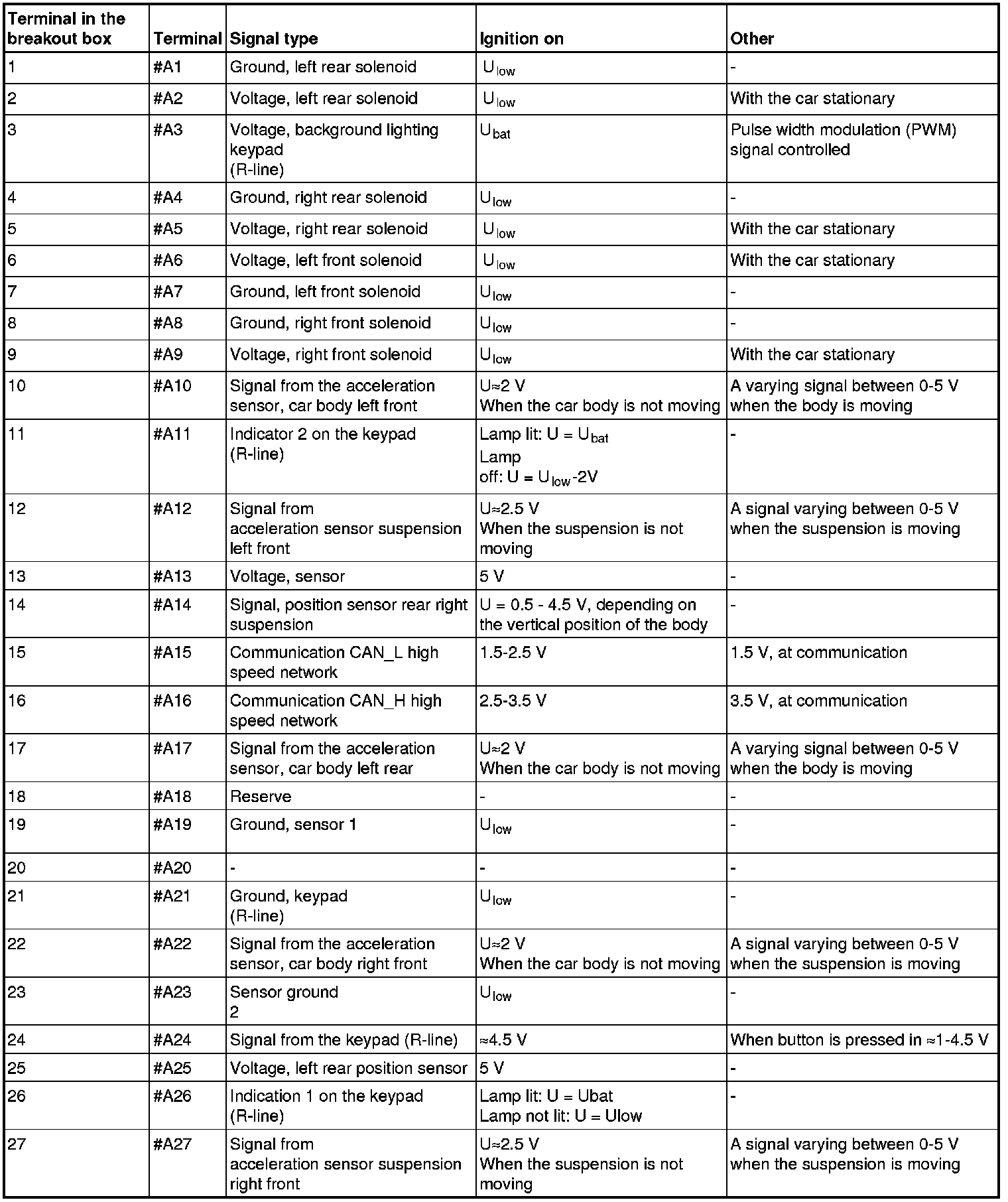

Connector A, terminals #A1 #A30
All values given below are between the terminals stated in column 1 (terminal in the breakout box) and terminal #C2 (ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check ground terminals before reading off.
