Acceleration Sensor Suspension Front (Four-C), Replacing

Acceleration sensor suspension front (Four-C), replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal and Installation

Preparatory work




Ignition off.
Raise the car.

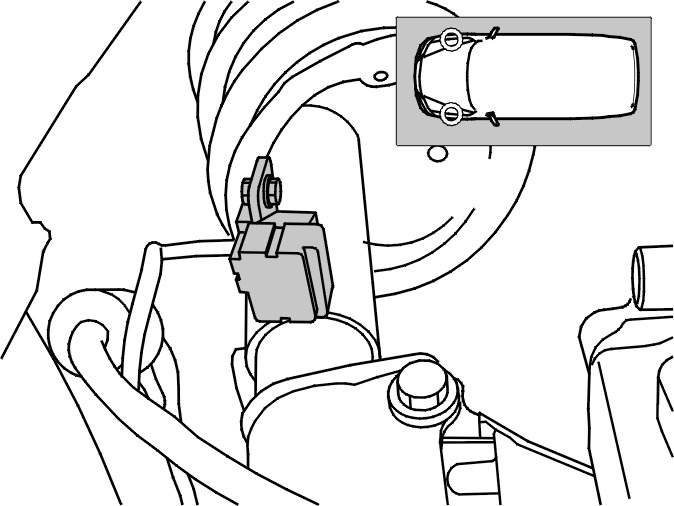

Removing the acceleration sensor




Remove the M6 screw.
Leave the acceleration sensor hanging from its cable.

Installing the acceleration sensor

Note! It is essential that the acceleration sensors are installed with the soft side facing downwards and are securely fixed in the vehicle. Otherwise movement may result in incorrect values being returned to the system, with poorer driving characteristics, when cornering for example, as a result.

Note! For tightening torques, see Specifications [1][2]Specifications.

Align the new acceleration sensor.
Install the M6 screw.
Route and secure the cable for the new acceleration sensor following the old cable. Remove the old cable.
Connect the connector.
Test the function.
