Acceleration Sensor Bodywork Front (Four-C), Replacing

Acceleration sensor bodywork front (Four-C), replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Location

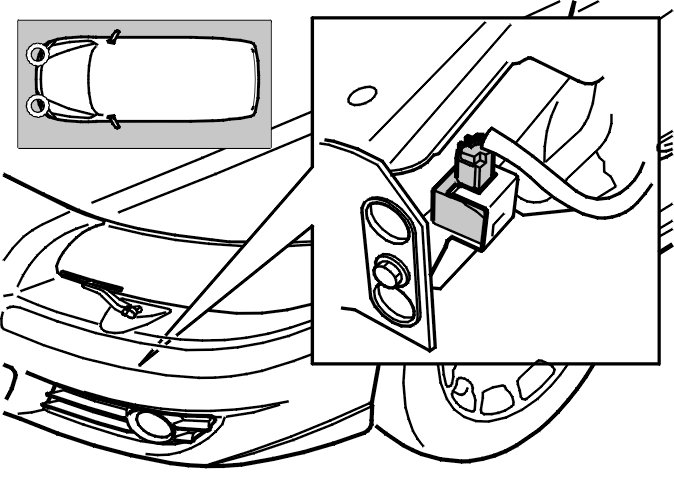

The front acceleration sensors are under the headlamps. See the illustration.

Preparatory work




Ignition off.
Raise the car.

Removing the acceleration sensor
Remove the M10 nut.
Disconnect the connector.

Installing the acceleration sensor

Note! It is essential that the acceleration sensors are installed with the connector facing upwards and is secure in the vehicle. Otherwise movement may result in incorrect values being returned to the system, with poorer driving characteristics, when cornering for example, as a result.

Note! For tightening torques, see Specifications [1][2]Specifications.

Install the M10 nut.
Connect the connector.
Test the function.
