Fuse and Relay Locations, Executive, Premier

Fuse And Relay Locations, Executive

Preparatory work
Switch off the ignition. Fold down the left side panel in the cargo compartment.

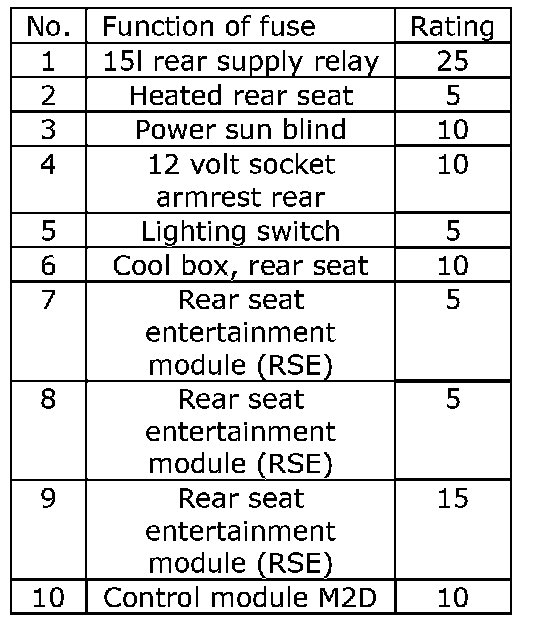

Replacing fuses
Remove the plastic cover from the fuse holder.
Remove the fuses using the fuse tool in the combined relay / fusebox in the engine compartment.

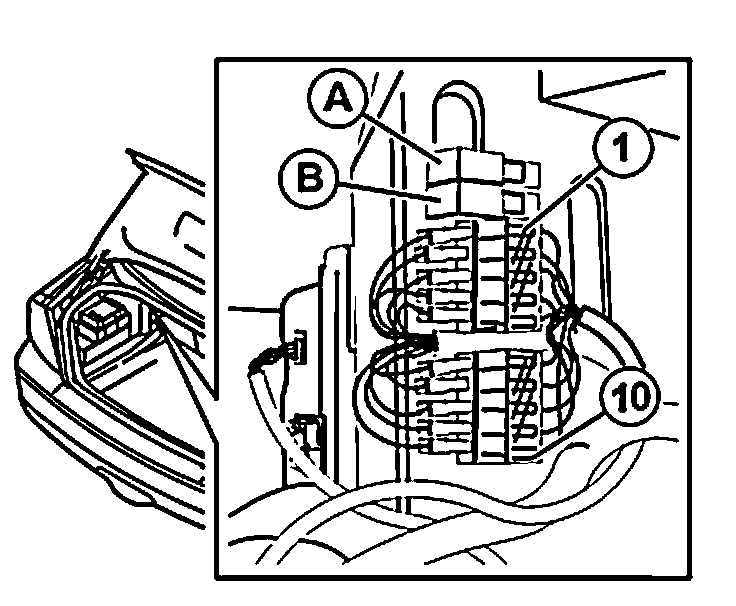

Replacing the relay
- A: 15l supply
- B: Heated rear seat.
