Fuse and Relay Locations, Executive

Fuse and relay locations, Executive

Preparatory work
Switch off the ignition.
Fold down the left side panel in the cargo compartment.

Replacing fuses

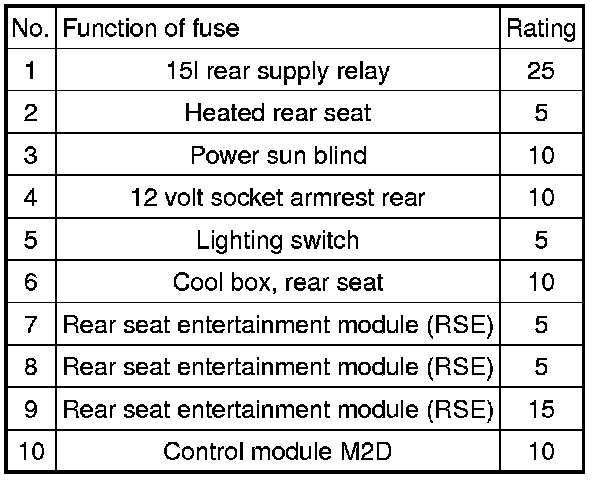

Fuses And Relay Locations, Executive (Replacing Fuses):

Remove the plastic cover from the fuse holder.
Remove the fuses using the fuse tool in the combined relay / fusebox in the engine compartment.

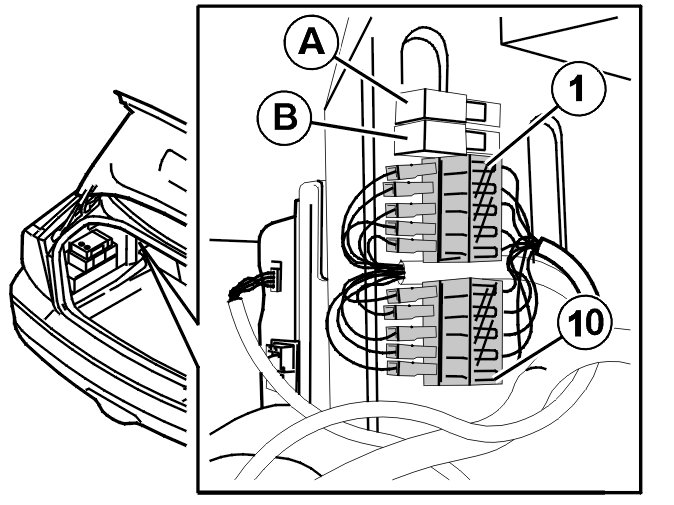

Fuses And Relay Locations, Executive (Replacing The Relay):

Replacing the relay

Relay location:
- A: 15l supply
- B: Heated rear seat.
