Outside Temperature Display Sensor: Service and Repair
Outside temperature sensor door mirror, replacing
Note! For model years 2004- (S60, S80 and V70 2000- except XC70 and XC90) see Model years 2004-.
Removal
Preparatory work
Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.
S80
Remove the door mirror. See Rearview mirror, replacing Rear View Mirror, Replacing.
Removing the outside temperature sensor

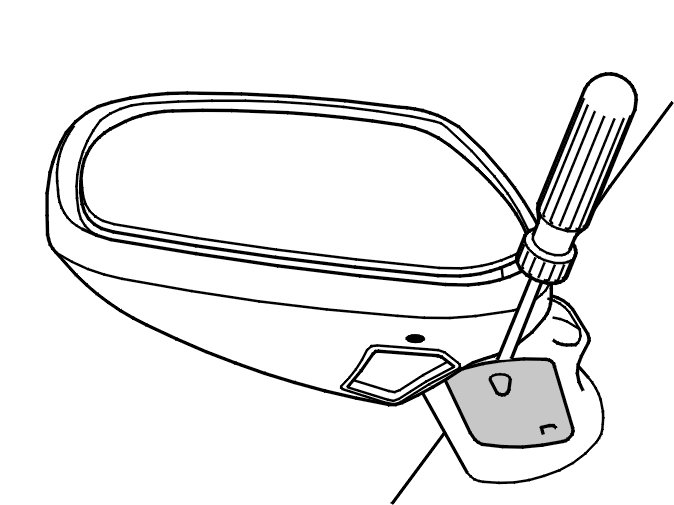

- Remove the temperature sensor using a screwdriver as illustrated
- Disconnect the terminal pin from connector
- Remove the temperature sensor.
Installation
Installing the outside temperature sensor
Route the cable for the temperature sensor to the connector.
Install the terminal pin in the connector.
Press the temperature sensor in the door mirror.
Finishing work
S80
Install the door mirror. See Rearview mirror, replacing Rear View Mirror, Replacing.
Model years 2004-
Preparatory work
Ignition off.
Remove the door mirror. See Door mirror, replacing Door Mirror, Replacing.
Removal

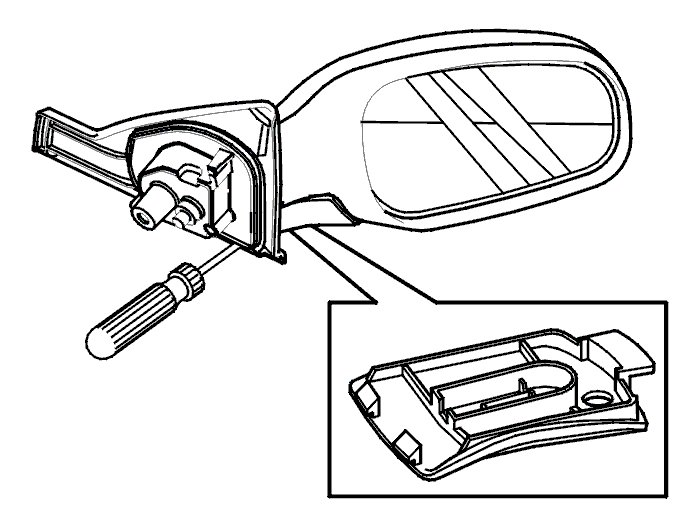

Remove the temperature sensor using a screwdriver as illustrated
Remove:
- the connector
- the terminal pins from the connector
- the temperature sensor.
Installation
Route the cable for the temperature sensor to the connector.
Install:
- the cable terminals in the connector
- the connector
- the temperature sensor in the door mirror
- the door mirror. See Door mirror, replacing Door Mirror, Replacing.
