Keypad Unit, Steering Wheel, Replacing

Keypad unit, steering wheel, replacing

Driver's airbag module
Remove the driver's airbag module. See Airbag driver and passenger (SRS), replacing Airbag Driver and Passenger (SRS), Replacing.

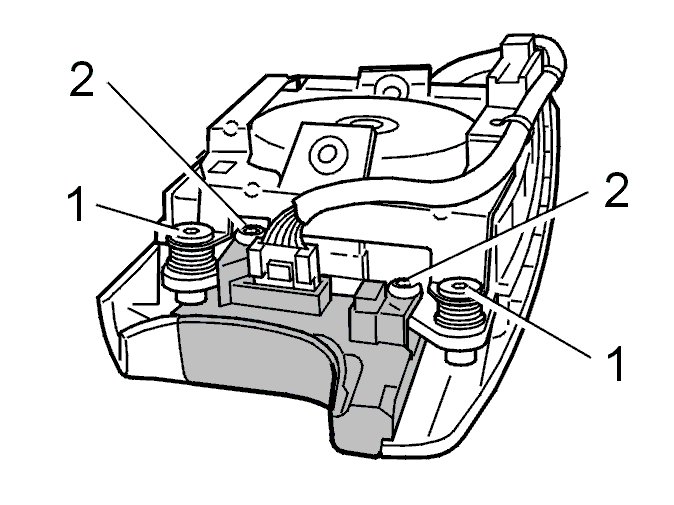

Keypad





Remove:
- the four screws for the bracket (1) (10 Nm)
- the two screws for the keypad kit x2 (2) (2 Nm)
- the two connectors for the keypad.
Install in reverse order
