Voice Activation Module: Service and Repair

Voice-box, replacing

Removal

Preparatory work
Fold down the left side panel in the cargo compartment.

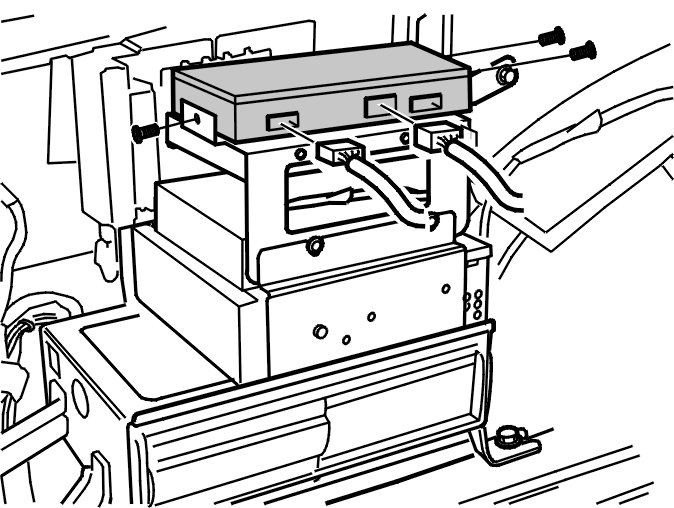

Removing the voice-box




Disconnect the two connectors from the voice-box.

Remove:
- the 3 mounting screws for the voice-box
- the voice-box.

Installation

Installing the voice-box





Install:
- the voice-box
- the 3 mounting screws for the voice-box.
Connect the two connectors to the voice-box.

Finishing
Fold up the left side panel in the cargo compartment.
