Parking Assistance Module (PAM), Replacing

Parking assistance module (PAM), replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off
Ignition off.
Fold down the rear cover in the side panel in the cargo compartment.

Removal

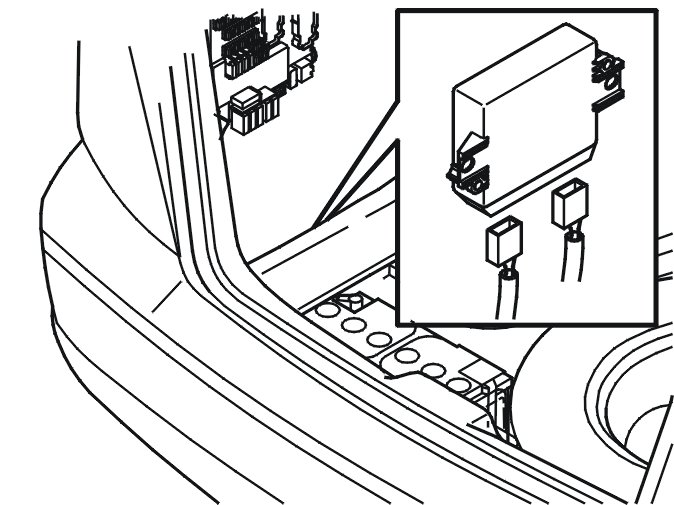

Removing the parking assistance module (PAM)





Remove:
- the control module from the Velcro strip mounting
- the 2 connectors.

Installation

Installing the parking assistance module (PAM)
Connect the connectors.

Install:
- the 2 connectors
- the control module in the Velcro mounting.

Note! Check that the control module is secure.

Finishing

Function test
Install the cover in the side panel.
Test the function.
