4T65 Transmission
4T65 Transmission

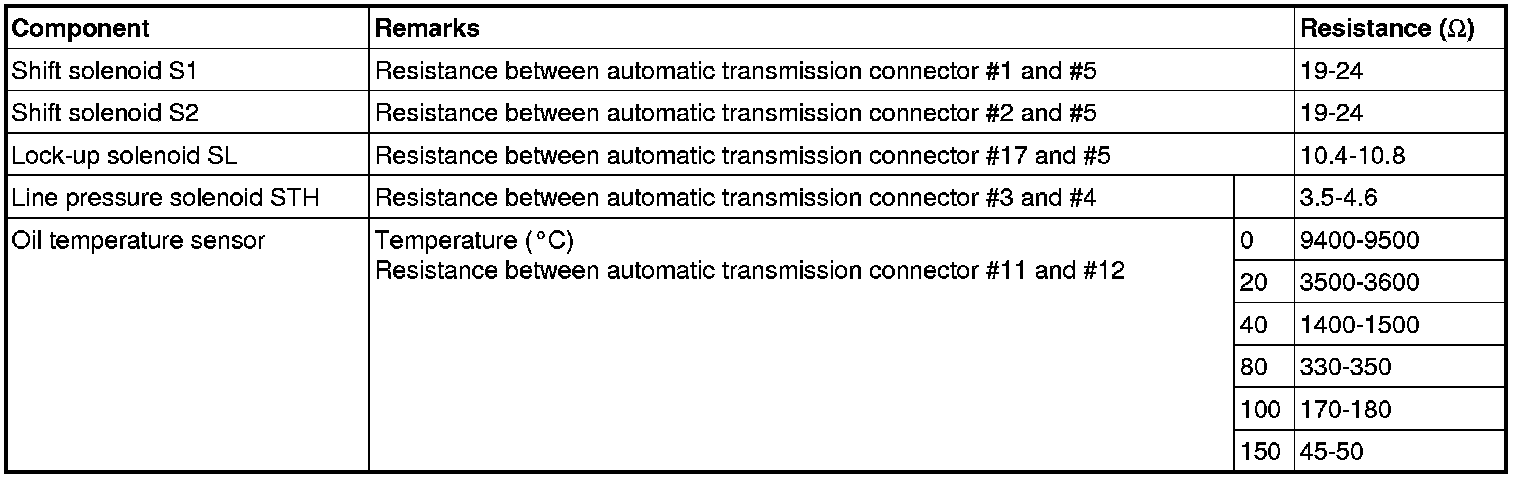

Component resistance values
Resistance values at 20 °C unless otherwise stated.
