Positive Crankcase Ventilation: Locations

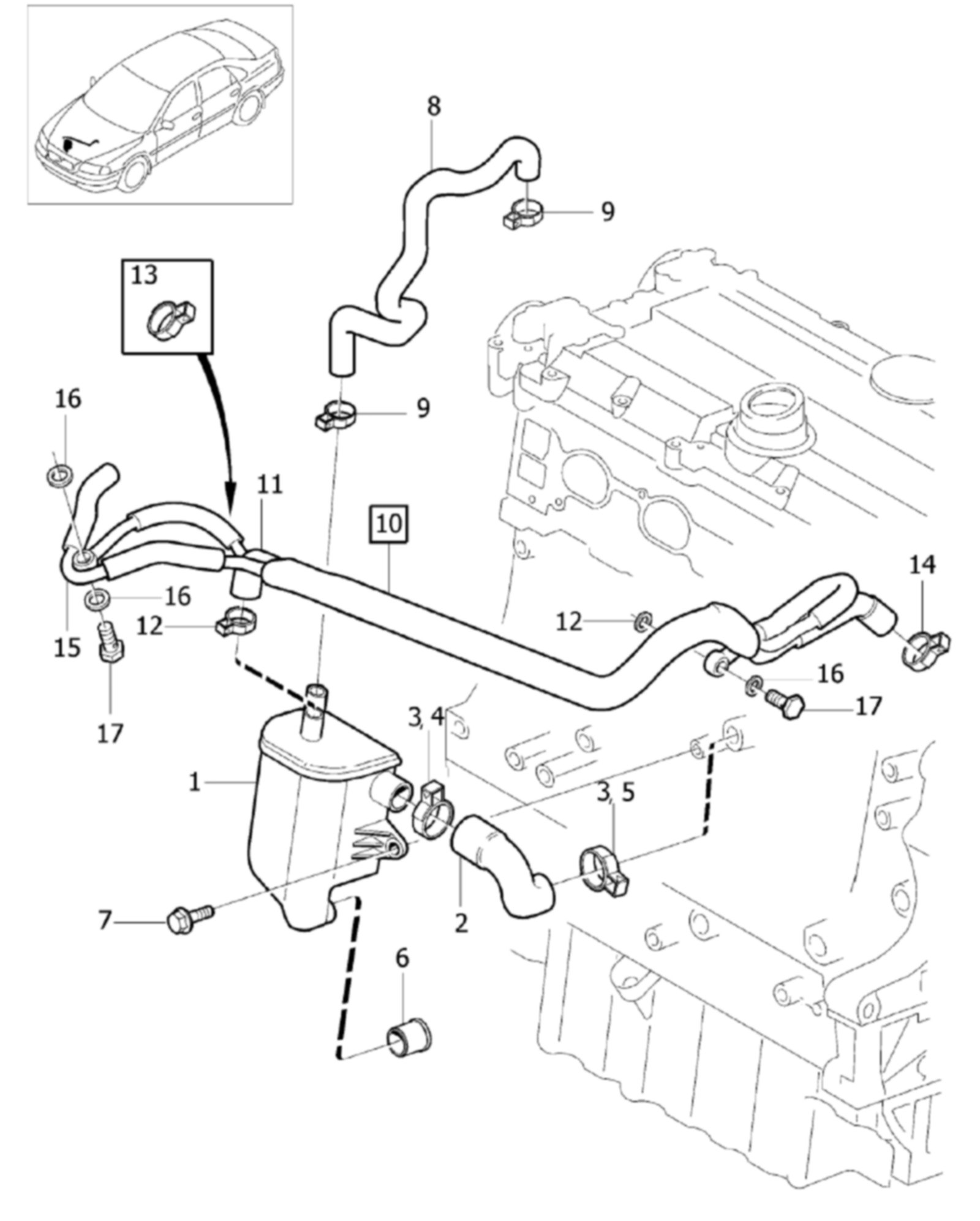

Crankcase Ventilation






1. Oil trap
2. Hose
3. Hose clamp
4. Hose clamp
5. Hose clamp
6. Hose
7. Flange screw
8. Hose
9. Hose clamp
10. Tube
11. Pipe
12. Hose clamp
13. Hose clamp
14. Hose clamp
15. Nipple
16. Gasket
17. Hollow screw (Regulator valve)
