Cabin Air Filter / Purifier: Service and Repair

Air cleaner passenger compartment, replacing

Removal

Remove:
- the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing





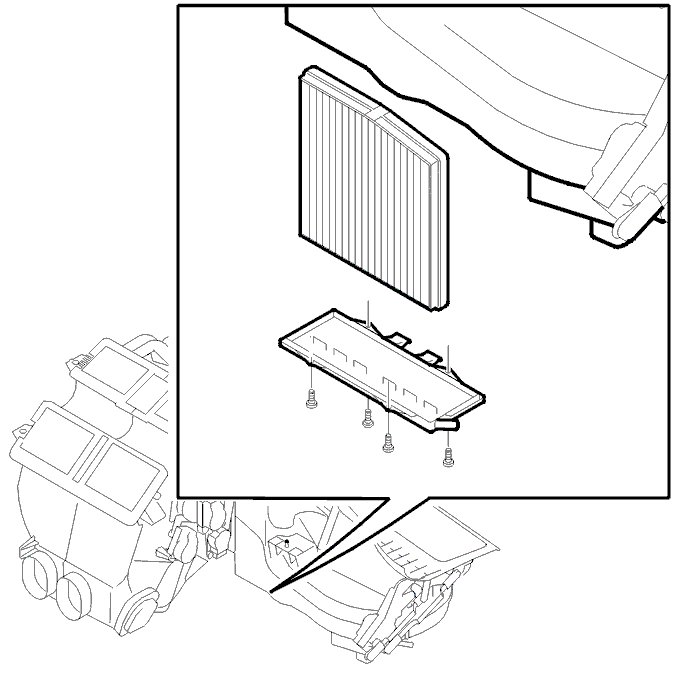

Remove:
- the screws for the cover
- the cover.
Pull the air cleaner (ACL) downwards / away.

Installation

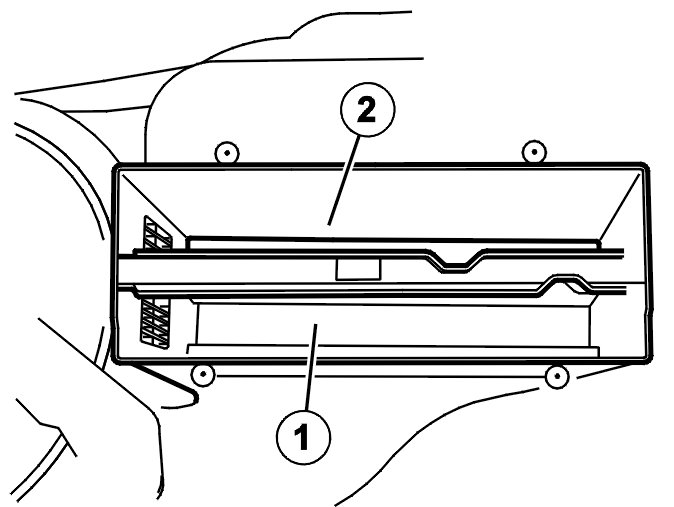

Install the air cleaner (ACL). There are 2 alternative positions for the air cleaner (ACL). See the illustration.
The pollen filter (standard) must be installed in the smaller compartment (1).
The multi filter (cars with an air quality sensor) must be installed in the wider compartment (2).

Note! Install either the pollen filter or the multi filter. Both filters must not be together.

Install:
- the screws. The front left screw must not be tightened to more than0.8 Nm
- the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing
