Electrical Diagrams

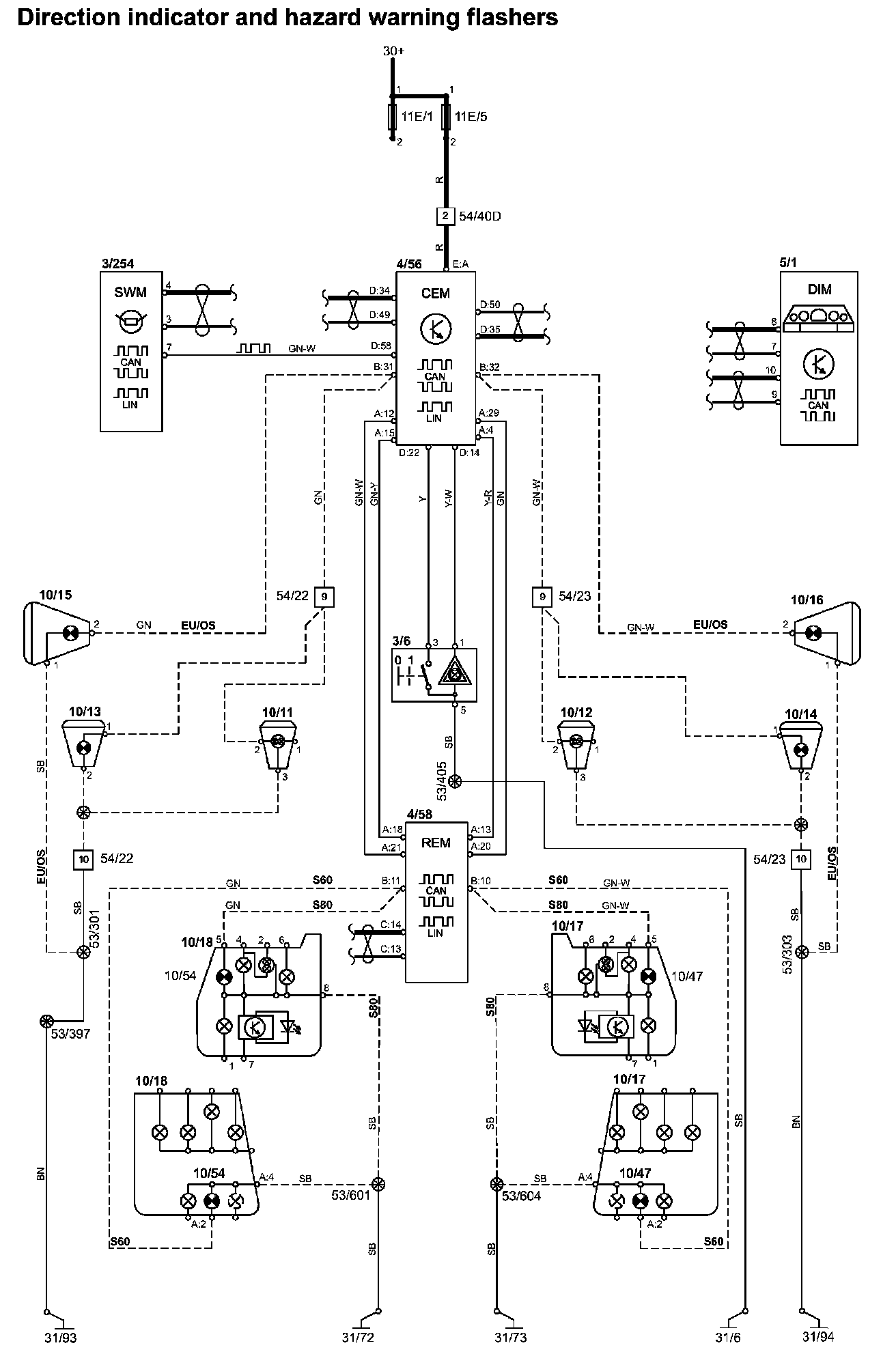

Direction Indicator And Hazard Warning Flashers

Direction Indicator And Hazard Warning Flashers:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
