Electrical Diagrams

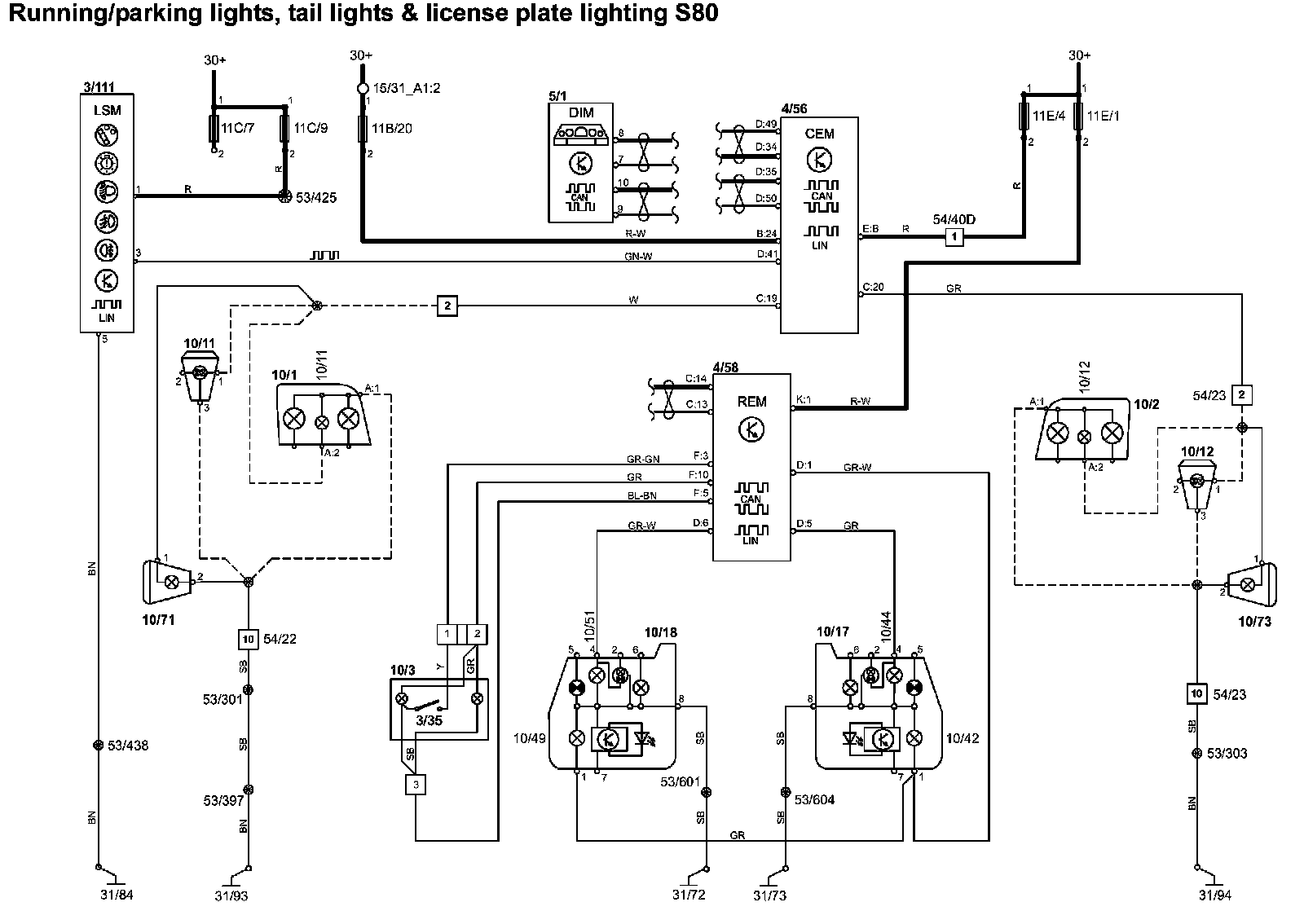

Running/parking Lights, Tail Lights & License Plate Lighting S80

Running/Parking Lights, Tail Lights & Licence Plate Lighting:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
