High and Low Beam (Bi-Xenon) & Daytime Running Lights

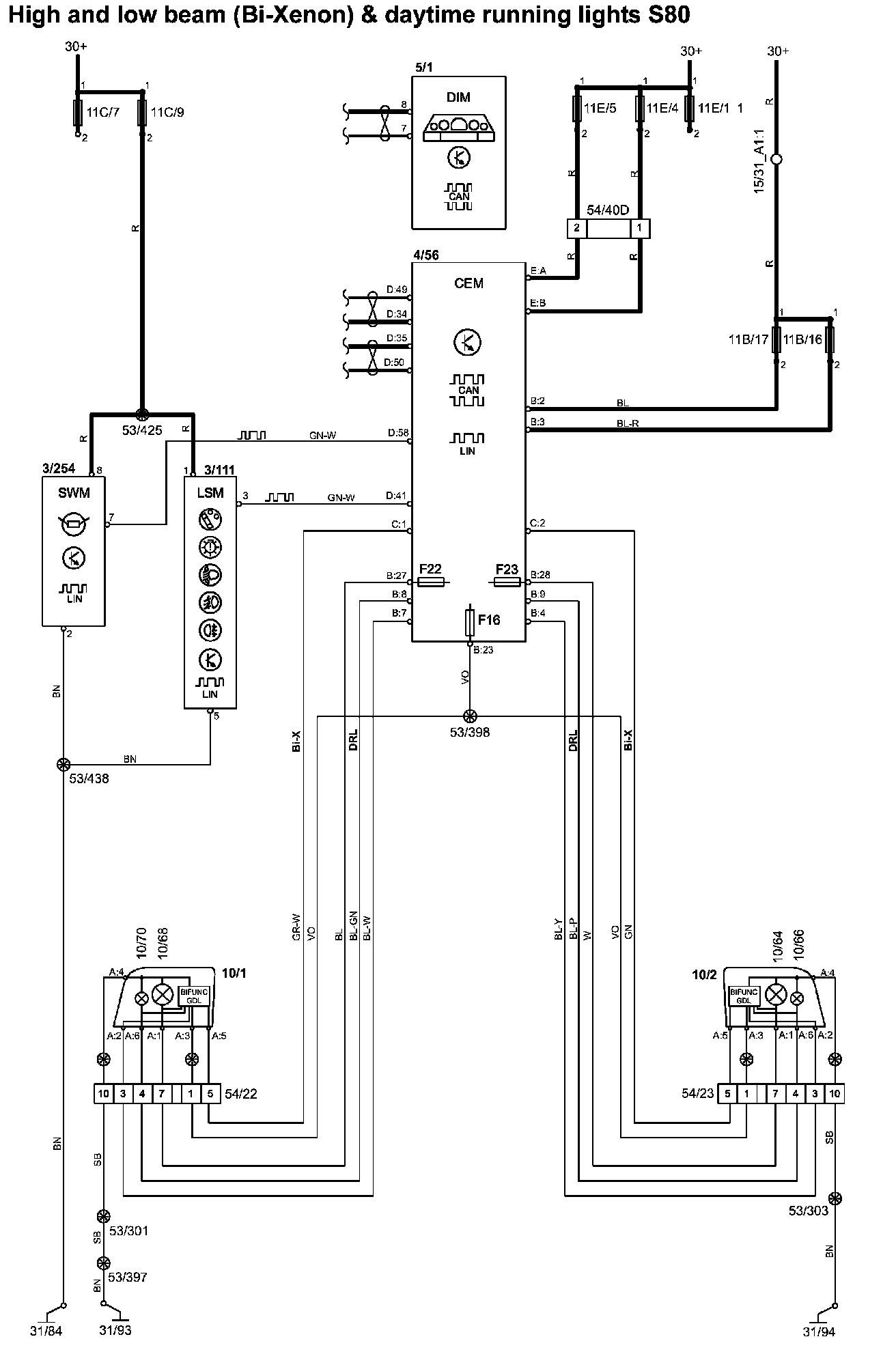

High And Low Beam (Bi-Xenon) & Daytime Running Lights S80


High And Low Beam (Bi-Xenon) & Daytime Running Lights:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
