Home >> Volvo >> 2006 >> S80 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Beam Length Adjustment

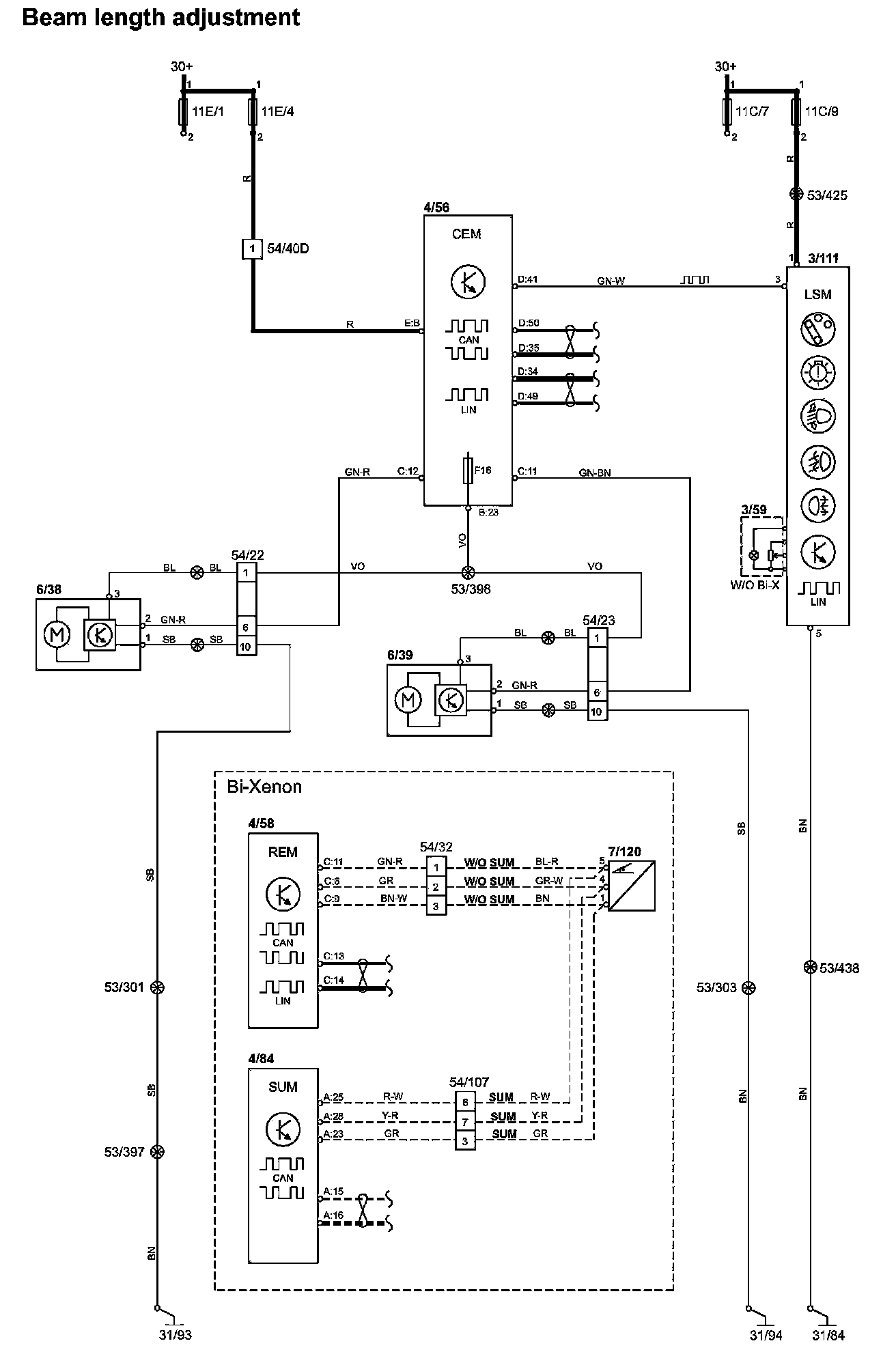

Beam Length Adjustment



Beam Length Adjustment

Beam Lenght Adjustment:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
