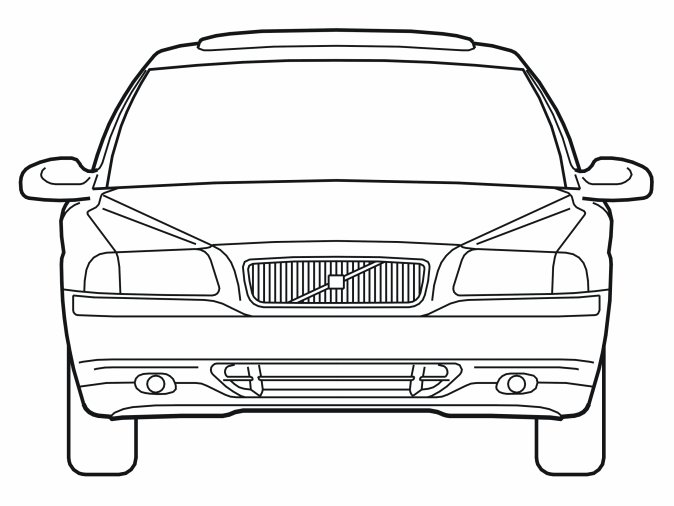

Fog Lamps

Fog lamps




















Fog lamps

Note! This accessory is connected to the electrical system of the car. It requires software unique to the car.

Note! The fuse and relay for the fog lamps are pre-installed on model year 2005-cars. Skip to point 6-8.

Carry out the following points for the left and right-hand fog lamps




- Raise the car

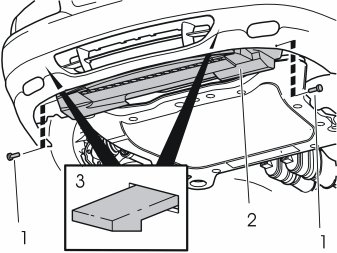

- Remove the cover (1) by releasing the plastic catch (2) and pressing it together according to A-A. Pull the cover forward.




- Remove the screws (1). Slacken off the air baffle (2)
- Release the catches (3). Pull the air baffle backwards
- Remove the air baffle.

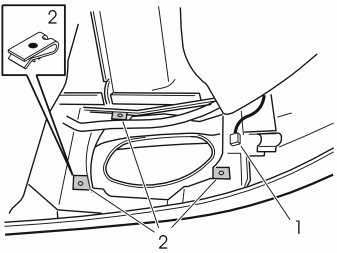

- Disconnect the existing connector (1) for the fog lamp
- Install the spring nuts (2) in the holes.

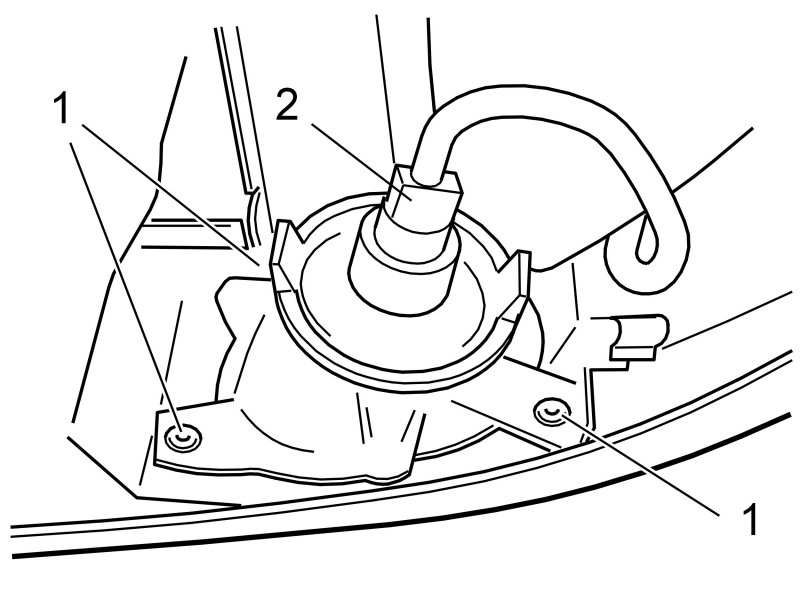

- Install the fog lamp using the screws (1) from the kit
- Connect the connector (2) to the fog lamp.

- Reinstall the air baffle
- Lower the car.





Applies to cars up to and including model year -2004

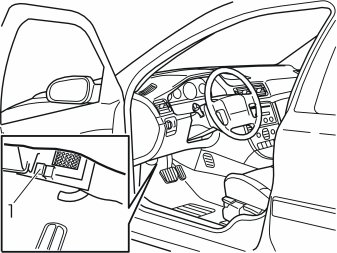

- Remove the cover (1) for the fuse holder
- Install a 15 A fuse:
- in position 3 for cars up to and including model year -2000
- in position 18 for cars up to and including model year 2001 -2004.
- Reinstall the cover.





Applies to cars up to and including model year -2004

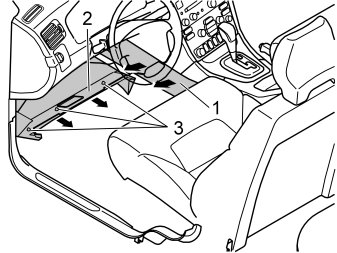

- Move the left front seat to its rearmost position
- Remove the side panel (1). First slacken off the screw clip in the rear edge of the panel
- Remove the soundproofing panel (2). Carefully pry it loose. Use a weatherstrip tool or similar. The soundproofing panel is secured using three clips (3).





Applies to cars up to and including model year -2004
- Install the relay (1) from the kit in the relay holder socket marked MI11
- Reinstall the soundproofing panel and the side panel.

Illustration A applies only to the USA





Illustration B applies to other markets

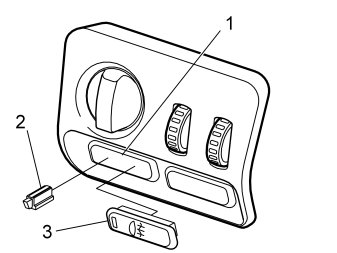

- Remove the cover (1) from the lighting control panel
- Install the light bulb (2)
- Install the button (3) from the kit. Press the button into place
- Program the software. See the service information in VIDA
- Check the function. Align the lamps.
