Courtesy Lighting, Rear, Replacing

Courtesy lighting, rear, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

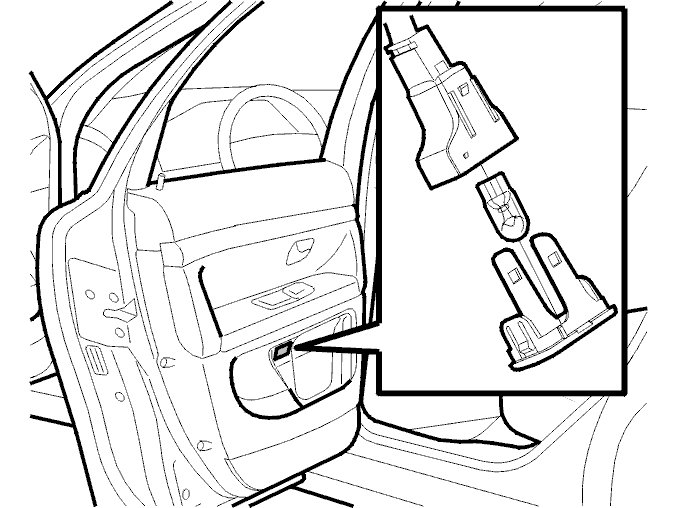

Removing the courtesy lighting rear




Carefully remove the lens using a weatherstrip tool.

Remove:
- the connector
- the bulb.

Installation

Installing the courtesy lighting rear





Install:
- the bulb
- the connector
- the lens.
Test the function.
