Cargo Lamp: Service and Repair

Bulb, Cargo Compartment Lighting, Replacing

Removal

Lens and bulb

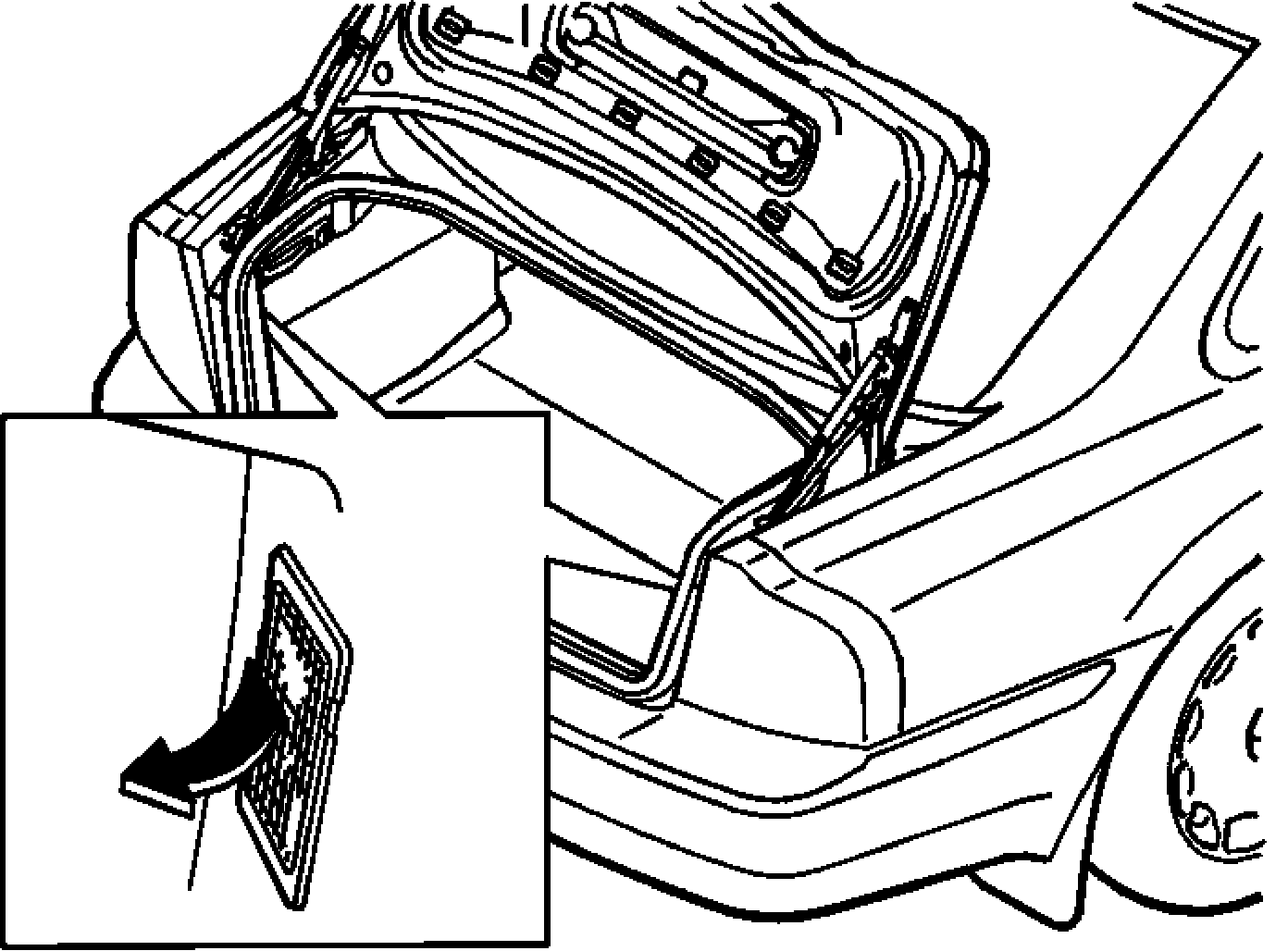

- Press the lower edge of the lamp housing downwards and outwards until the top edge is released
- Disconnect the connector
- Remove the bulb.

Installation

Lens and bulb
In reverse order.
