Sealing Trim Strip Cool Box, Replacing

Sealing trim strip cool box, replacing

Removal

Preparatory work
Fold the rear armrest forward. Close the cover for the cool box.

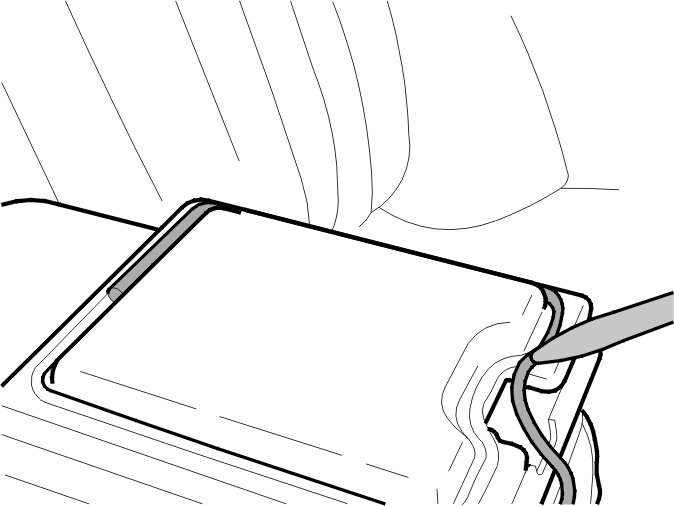

Removing sealing trim strip from the cool box




Carefully pull off the old sealing trim strip.

Installation

Installing the sealing trim strip for the cool box




Start in the center of the bottom of the cover and press the sealing trim strip with a weatherstrip tool.

Note! Do not stretch the sealing trim strip.

Press the sealing trim strip into place all around. Ensure that the ends of the sealing trim strip meet each other. The length of the strip can be adjusted by up to 1 cm by cutting it to the correct length.

Finishing
Close the cool box cover. Fold down the rear armrest.
