Location of Components






Location of components

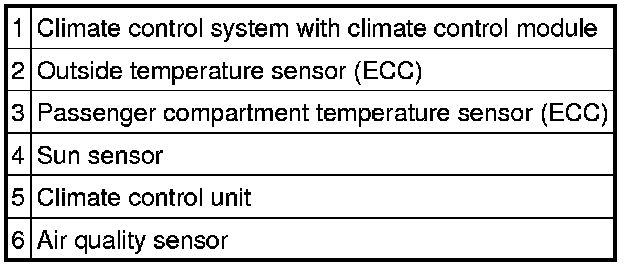

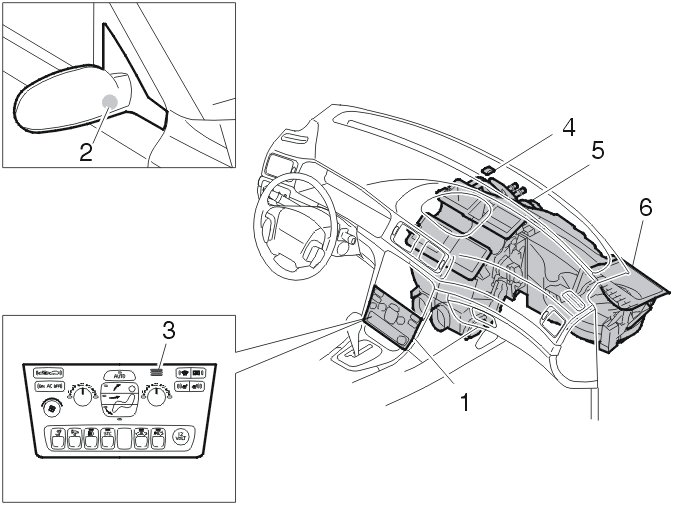

Control panel and sensors

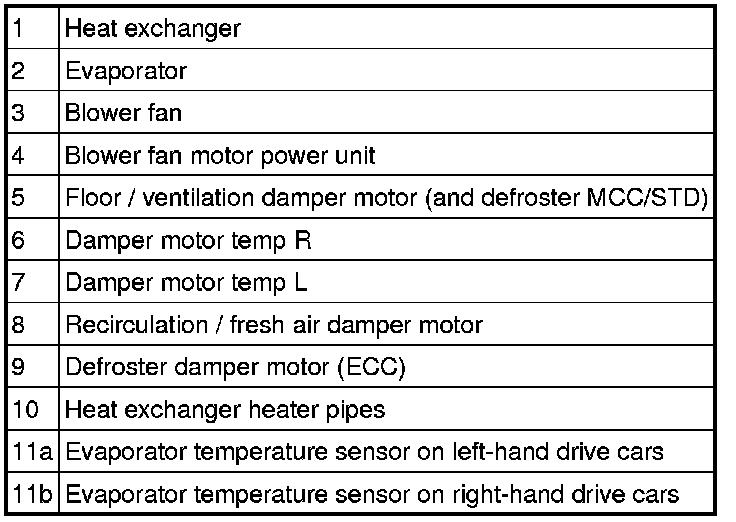

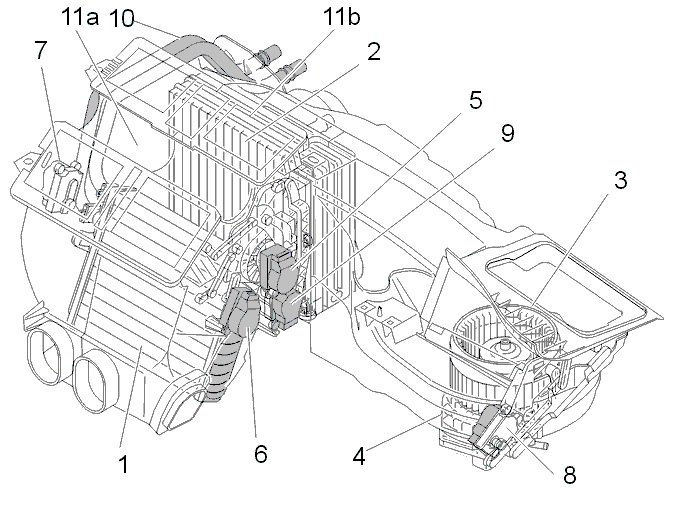

Climate control unit and components

Location of Climate Control System Components (Climate Control Unit):










Engine compartment with air conditioning (A/C) components

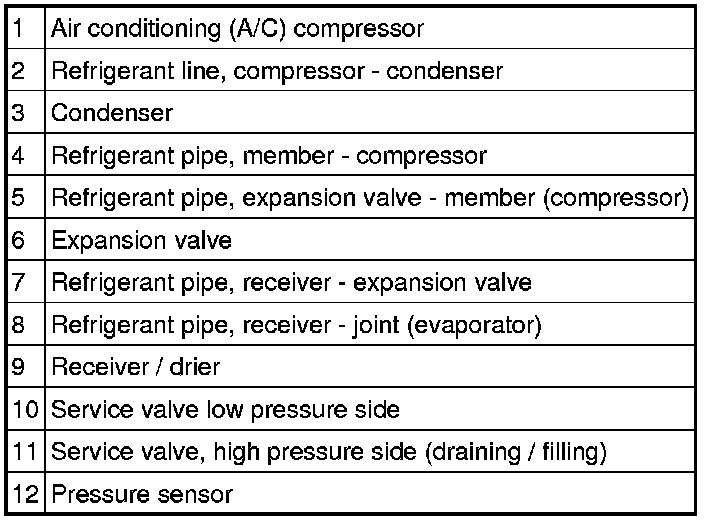

Location of Climate Control System Components (Engine Compartment):
