Connecting the Breakout Box

Connecting the breakout box

Special tools:
951 1373 Adaptor 951 1373 Adaptor
951 1428 Breakout box 951 1428 Breakout Box

Connecting the breakout box




- Ignition off
- Expose the heater.

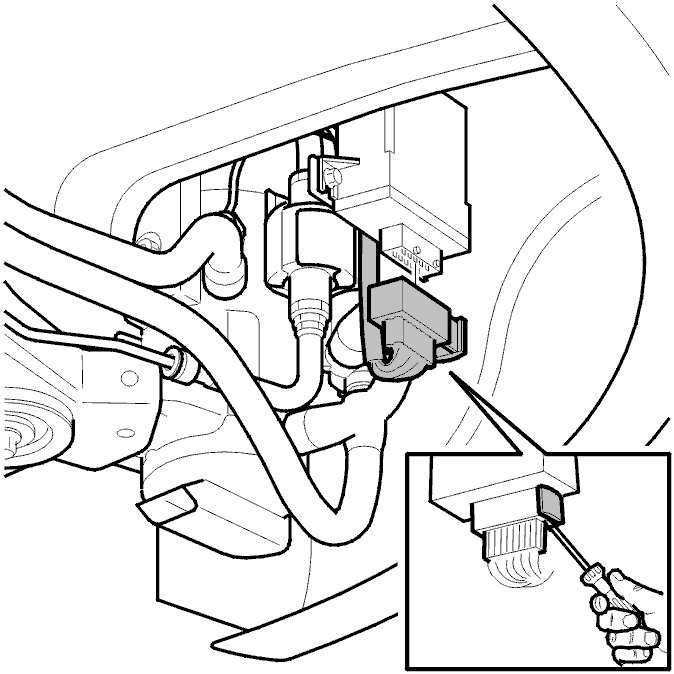

Position a screwdriver between the control module connector and its locking handle.
Turn the screwdriver to release the catch.
Continue pulling the locking handle outwards until the connector comes away from the control module.
Connect adapter951 1373 Adaptor 951 1373 Adaptor to the control module connector. Connect breakout box951 1428 Breakout box 951 1428 Breakout Box to the adapter.
Disconnect the breakout box in reverse order.
For the location of the components, see Engine coolant heater, component location Locations.
