Damper Motor, Temperature, Replacing

Damper motor module (DMM) temperature, replacing

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Note! The are 2 damper motor modules (DMM) for temperature, one on the right (white arm) and one on the left-hand side (black arm).

Removal

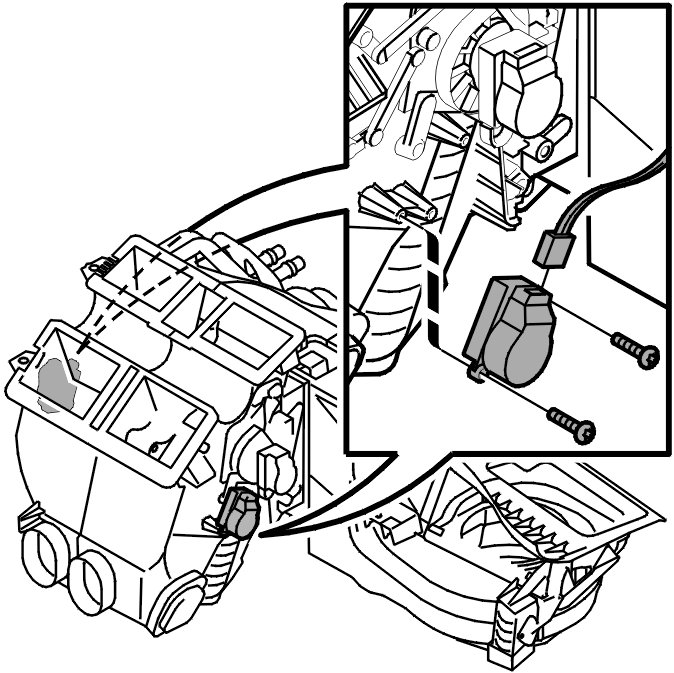

Removing the damper motor module (DMM) for temperature on the passenger side





Remove:
- the glove compartment. See Glove compartment, replacing Service and Repair
- the switch

Hint: Use a small electrician's screwdriver to pry up the switch by the lock. Depress the switch at the rear edge. Pull straight out.

- the 2 x screws
- the control module.

Installation

Installing the damper motor module (DMM) for temperature on the passenger side





Install:
- the control module in position. Adjust the shaft journal so that it goes in
- the 2 screws. Tighten alternately
- the switch. Ensure that it is correctly positioned
- the glove compartment. See Glove compartment, replacing Service and Repair.

Note! Identify the damper motor module (DMM) for temperature. See VIDA vehicle communication.

Removal

Removing the damper motor module (DMM) for temperature on the driver's side





Remove:
- the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing
- the connector from the control module

Hint: Use a small electrician's screwdriver to pry up the switch by the lock. Depress the switch at the rear edge. Pull straight out.
Pull the control module out slightly. Position the point of the electrician's screwdriver between the arms on the control for the lever. Pry the arms away from the ball on the motor lever.

- the 2 x screws
- the control module.

Installation

Installing the damper motor module (DMM) for temperature on the driver's side





Install:
- the control module in position. Adjust the shaft journal so that it goes in
- the lever for the mechanism on the ball for the motor lever

Hint: Insert the point of the electrician's screwdriver behind the lever and round-nosed pliers or similar behind the motor lever. Press the ball onto the mechanism.

- the 2 screws. Tighten alternately
- the switch. Ensure that it is correctly positioned
- the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing.

Note! Identify the damper motor module (DMM) for temperature. See VIDA vehicle communication.

Finishing

Testing the climate control system
Carry out a performance test on the climate control unit. See: Climate system, performance test Climate System, Performance Test
