Damper Motor, Defroster, Replacing

Damper motor module (DMM) defroster, replacing

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Note! The damper motor module (DMM) for the defroster is only used in cars with electronic climate control (ECC). It is positioned on the right-hand side of the car.

Removal

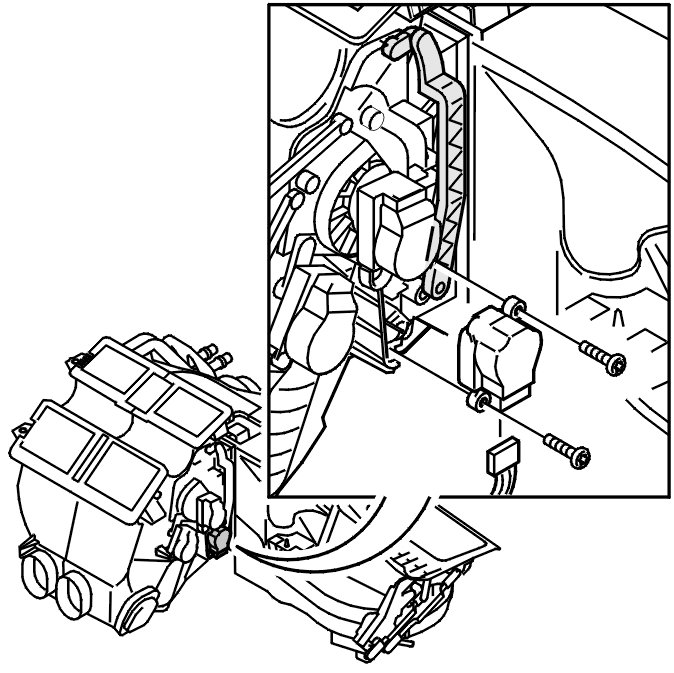

Removing the damper motor module (DMM) for the defroster





Remove:
- the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing
- the glove compartment. See Glove compartment, replacing Service and Repair
- the switch

Hint: Use a small electrician's screwdriver to pry up the switch by the lock. Depress the switch at the rear edge. Pull straight out.

- the 2 x screws
- the control module.

Installation

Installing the damper motor module (DMM) for the defroster

Install:
- the control module in position. Adjust the shaft journal so that it goes in
- the 2 screws. Tighten alternately
- the switch. Ensure that it is correctly positioned
- the glove compartment. See Glove compartment, replacing Service and Repair
- the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing

Note! Identify the damper motor module (DMM) for the defroster. See VIDA vehicle communication.

Finishing

Testing the climate control system
Carry out a performance test on the climate control unit. See: Climate system, performance test Climate System, Performance Test
