System Diagram
Engine Management System, 5-Cyl Turbo

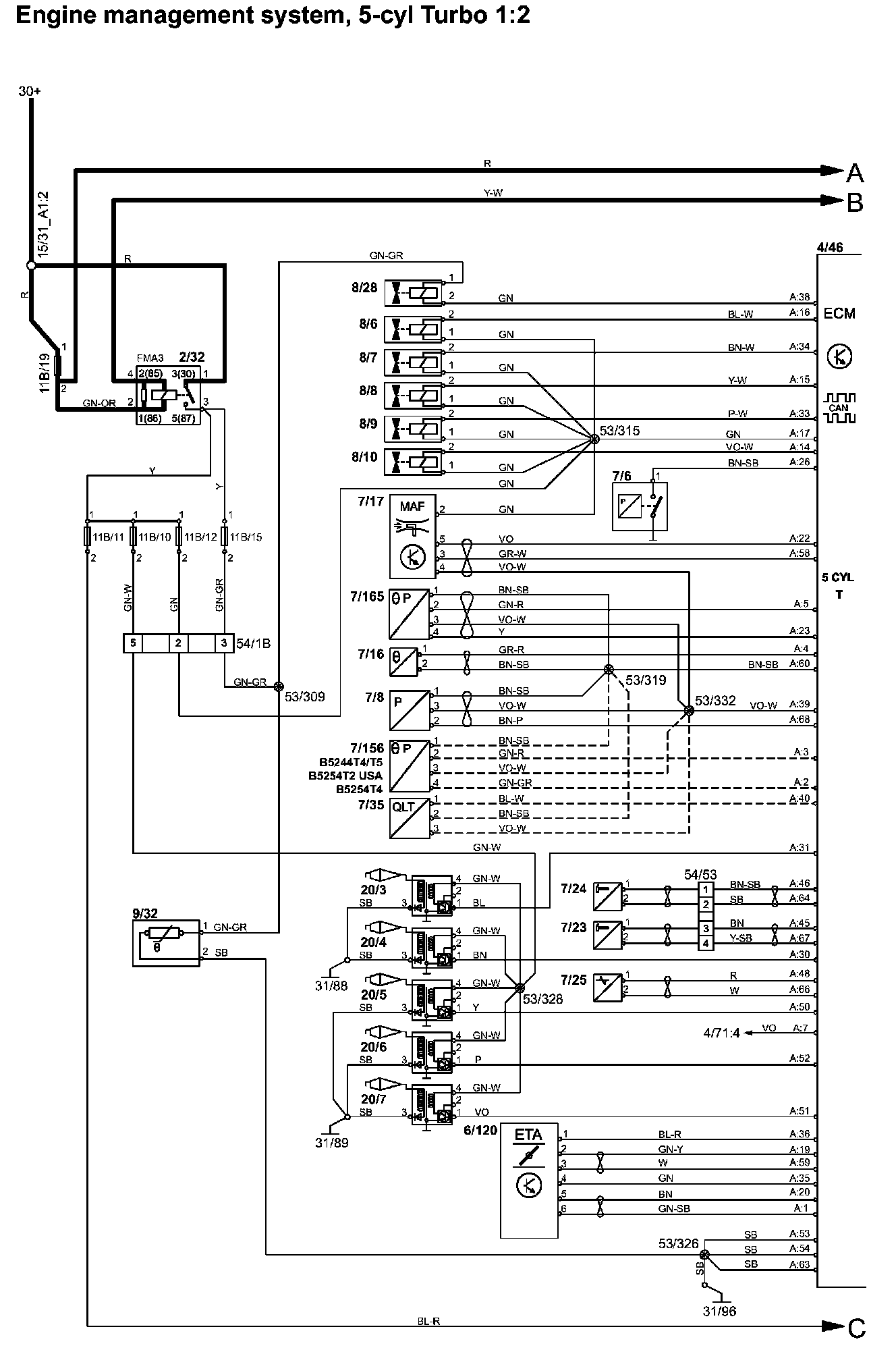

Engine Management System (Part 1):

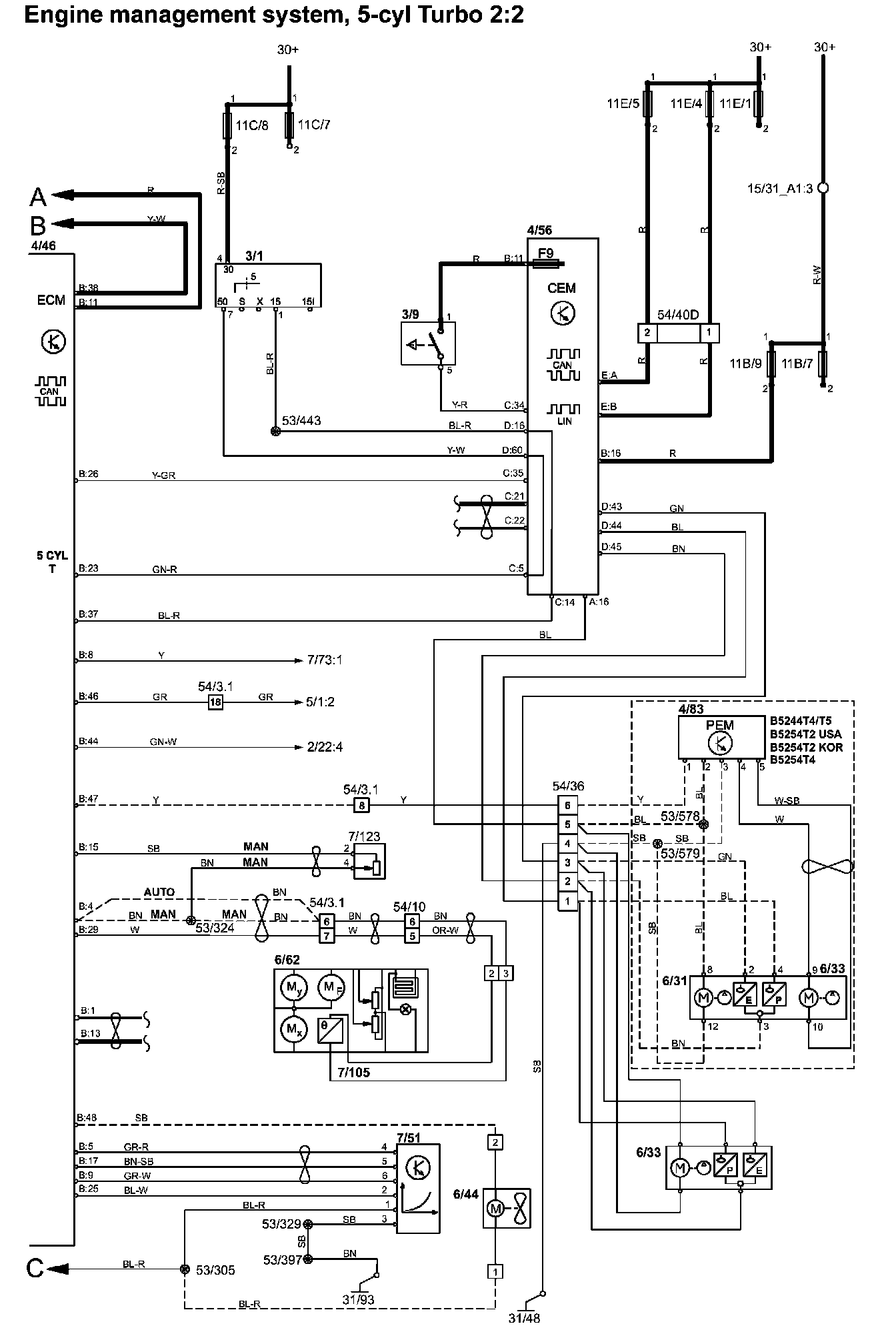

Engine Management System (Part 2):
Diagram Legend: Diagram Legend
Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
List of Components By Component Number: List of Components By Component Number
